Exam 7230X topic 1 question 19 discussion

Actual exam question from Avaya's 7230X
Question #: 19
Topic #: 1
[All 7230X Questions]

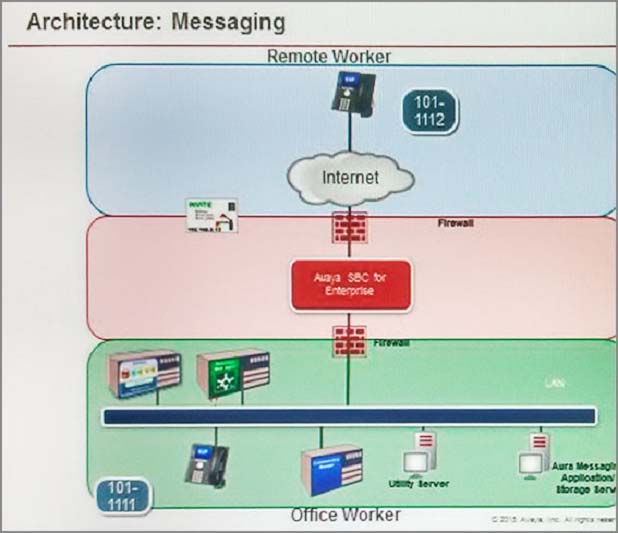

Refer to the exhibit.
Avaya Tier 3 support receives a case escalated by Tier 2 where the customer cannot receive incoming calls, but can make calls out successfully. The trace shows that the incoming calls arrive at the Avaya Session Border Controller for Enterprise (SBCE) but fail to get routed into the customer enterprise network.
Based on this information, what is and is not working?

  • A. The local area network, Avaya Aura Communication Manager, and Avaya Aura Session Manager are working. SBCE is partially working, but routing may be incorrect.
  • B. The local area network, Avaya Aura® Communication Manager, and Avaya Aura® Session Manager are working. The public network is not working.
  • C. The local area network, Avaya Aura® Communication Manager, and Avaya Aura® Session Manager are working. SBCE is not working.
  • D. The local area network and Avaya Aura® Session Manager are working. Avaya Aura® Communication Manager is not working.
Show Suggested Answer Hide Answer

Suggested Answer: D

Comments

C01
5 months, 4 weeks ago
"A" Correcta Communication Manager is working because can make calls out successfully, SBCE is partially working * Notice that the FROM header is an IP address instead of a domain name = avava.com. CM needs to see domain name. IP address to domain conversion is performed by Topology Hiding.
upvoted 3 times
...
bakzazam
3 months, 2 weeks ago
I believe A is the right answer
upvoted 1 times
...
fejoes
1 month ago
No clear answer listed. The possible best answer is "A" where the incoming routing profile of the server flow is broken.
upvoted 1 times
...
