Exam 101 topic 1 question 438 discussion

Actual exam question from F5's 101
Question #: 438
Topic #: 1
[All 101 Questions]

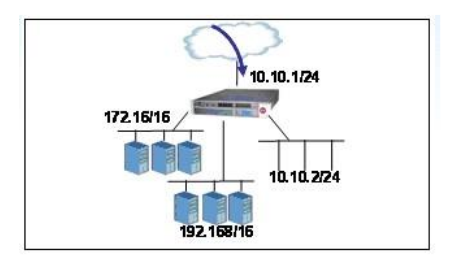

An LTM has the 3 virtual servers, 2 SNATs, four self IP addresses defined and the networks shown in the exhibit. Selected options for each object are shown below. Settings not shown are at their defaults. Assume port exhaustion has not been reached.

A connection attempt is made with a source IP and port of 10.20.100.50:2222 and a destination IP and port of 10.10.2.102:443.
When the request is processed, what will be the source and destination IP addresses?

  • A. Source IP: 10.10.2.103; Destination IP: pool member in the 192.168/16 network
  • B. Source IP: 10.10.201; Destination IP: pool member in the 192.168/16 network G
  • C. Source IP: 10.10.2.103; Destination IP: 10.10.2.102
  • D. The request will be dropped.
  • E. Source IP: 10.20.10.50; Destination IP: pool member in the 192.168/16 network
  • F. Source IP: 10.10.201; Destination IP: 10.102.102
Show Suggested Answer Hide Answer
Suggested Answer: C 🗳️
by Timber at Aug. 17, 2020, 5:32 a.m.

Comments

Chosen Answer:
This is a voting comment (?) , you can switch to a simple comment.
Switch to a voting comment New
Submit Cancel
aatechler
1 year, 1 month ago
Selected Answer: E
Need to change the IP to 10.20.100.50
upvoted 1 times
...
Timber
3 years, 8 months ago
C doesn't look very correct. Leaning more towards "E" if source IP is changed to 10.20.100.50.
upvoted 1 times
mpro
3 years, 3 months ago
Yeah, I think you're correct. There's no SNAT configured and it's transparent so I don't see why it wouldn't just be source unchanged and destination is changed to the actual virtual server subnet
upvoted 1 times
Ritazx
2 years, 7 months ago
But there is a forwarder and the traffic is port 443 and that is SNATTED?
upvoted 1 times
...
...
...
