Exam H12-211 topic 1 question 255 discussion

Actual exam question from Huawei's H12-211
Question #: 255
Topic #: 1
[All H12-211 Questions]

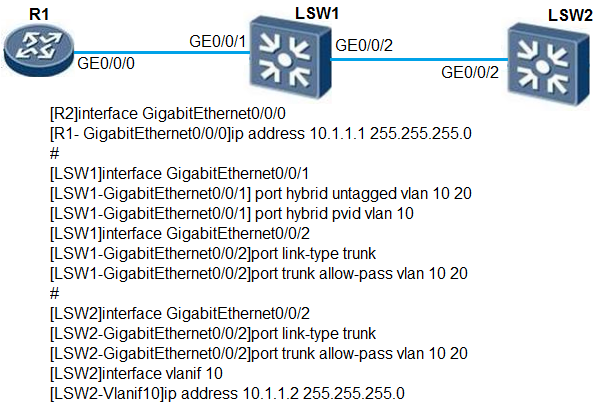

Refer to the graphic, after the ping 10.1.1.2 command is executed on R1, LSW1 receives a tagged data frame from VLAN 10 on LSW2.

  • A. TRUE
  • B. FALSE
Show Suggested Answer Hide Answer
Suggested Answer: B 🗳️

Comments

Chosen Answer:
This is a voting comment (?) , you can switch to a simple comment.
Switch to a voting comment New
jjbt_112
2 years, 2 months ago
B. The answer will be True, if only just vlan assignment was previously configured on both switches. Example: [LSW1]vlan batch 10 20 [LSW2]vlan batch 10 20
upvoted 1 times
elopez2207
1 year, 11 months ago
it goes without saying that this has already been done
upvoted 1 times
...
...
learner_88
2 years, 4 months ago
Selected Answer: A
The IP 10.1.1.2 is configured under interface vlan10 and it is under a trunk port. So, the come back of the ping have to be tagged. In my opinion, the answer is True.
upvoted 2 times
molochtrooper
1 year, 9 months ago
Hyprid untagged vlan 10, vlan 20 is an invalid configuration by 802.1Q. You can have to tagged Vlans on a port, but not two untagged Vlans.
upvoted 1 times
...
...
learner_88
2 years, 5 months ago
The IP 10.1.1.2 is configured under interface vlan10 and it is under a trunk port. So, the come back of the ping have to be tagged. In my opinion, the answer is True.
upvoted 1 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
