Exam 70-741 topic 1 question 100 discussion

Actual exam question from Microsoft's 70-741

Question #: 100
Topic #: 1

You have three servers named Server1, Server2, and Server3 that run Windows Server 2016. On all three servers, Windows Firewall is configured to allow ICMP traffic. Server2 has two network adapters named NIC1 and NIC2.

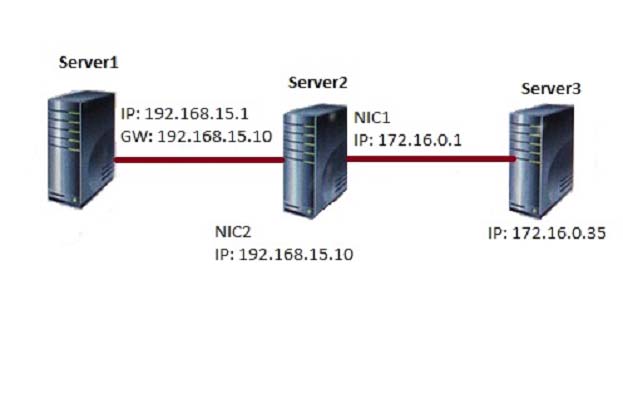

Your network is configured as shown in the exhibit. (Click the Exhibit button.)

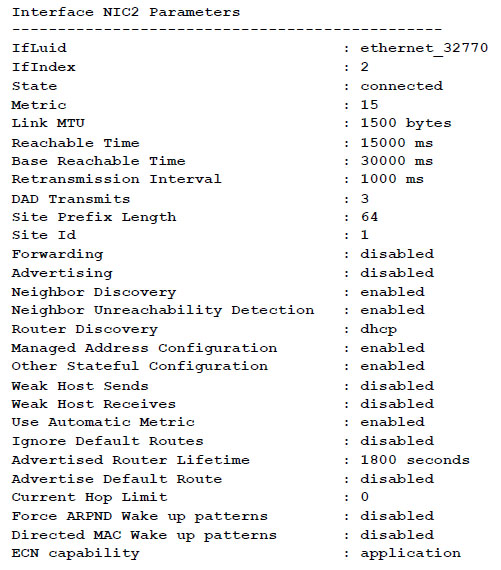

The parameters for NIC2 on Server1 are shown in the following output.

Which ping request will result in a reply from the destination host?

A. From Server2, ping 192.168.15.1
B. From Server3, ping 192.168.15.1
C. From Server1, ping 172.16.0.1
D. From Server1, ping 172.16.0.35

Show Suggested Answer

Suggested Answer: A 🗳️

by noppy at May 31, 2019, 10:27 a.m.

Comments

Submit Cancel

noppy

Highly Voted 5 years, 6 months ago

Just want to mention that there is a typo "NIC2 on Server1" should be "NIC2 on Server2"

upvoted 13 times

...

dan

Highly Voted 5 years, 5 months ago

forwarding is disabled?

upvoted 8 times

minajahan

5 years, 2 months ago

Yes, I think this is one of the reasons why ping from Server3 to Server1 will not work.

upvoted 6 times

...

panda

Most Recent 4 years ago

I believe using Get-NetIPInterface you can get the given Interface NIC2 Parameters. https://docs.microsoft.com/en-us/powershell/module/nettcpip/get-netipinterface?view=win10-ps It explains "-Forwarding", "-CurrentHopLimit".

upvoted 2 times

...

ykarma

4 years ago

I think i got this on my exam November 27th 2020

upvoted 3 times

...

alexnt

4 years, 2 months ago

There is a similar question but I'm not sure that the answer is correct. https://ibb.co/9V2Vk1f Has anyone different opinion from the suggested answer?

upvoted 2 times

...

AceBurn90

4 years, 3 months ago

Answer A is absolutely correct. But why is C not also correct? Server2 can ping 192.168.15.1 (Server1), but why can't Server1 ping 172.16.0.1 (Server2)?

upvoted 1 times

jimehix971

3 years, 11 months ago

C could be perfectly correct too IMHO

upvoted 1 times

...

Kamikazekiller

4 years, 5 months ago

Answer is correct.

upvoted 2 times

...

Arlomini

4 years, 8 months ago

A is correct because this ping doesn't required a routing process to reach the destination. all other ping will failed due to the routing process which are not defined / mentioned between the two network.

upvoted 4 times

...

lbs

4 years, 8 months ago

Answer is A bcos NIC2 is in the same network ie.192.168.15.x

upvoted 3 times

...

slcc99

4 years, 11 months ago

Since the "current hop limit" of NIC2 is "0", pings to networks other than 192.168.15 / 0 are not transferred.

upvoted 3 times

panda

4 years, 1 month ago

I found following explanation for current hop limit. The current hop limit is the value that the IP interface writes in the time-to-live (TTL) field in all outbound traffic. When routers forward a packet, they decrement the hop limit by 1 and discard the packet when the hop limit is 0. https://docs.microsoft.com/en-us/powershell/module/nettcpip/get-netipv4protocol?view=win10-ps

upvoted 2 times

...

RickSk

5 years, 5 months ago

Could anyone point out the relevance of NIC2's parameters being shown?

upvoted 2 times

Spud1993

5 years, 5 months ago

probably just trying to catch you out looking at what's enabled/disabled and get you to pick an IP that it cant ping

upvoted 4 times

...

jimehix971

3 years, 11 months ago

Maybe the forwarding part. In linux machines you only need to enable forwarding to make any host a router. Here it states forwarding is disabled.

upvoted 1 times

...
