Exam 70-414 topic 1 question 104 discussion

DRAG DROP -
Your network contains an Active Directory domain named contoso.com. The domain contains multiple servers that are configured as Hyper-V hosts.

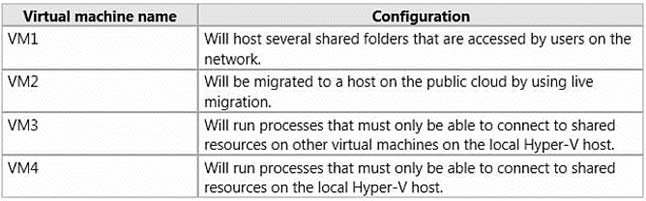

You plan to implement four virtual machines. The virtual machines will be configured as shown in the following table.

You need to identify which network must be added to each virtual machine.
Which network types should you identify?

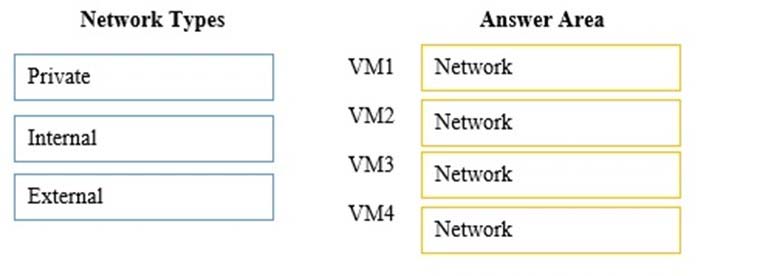

To answer, drag the appropriate Network Type to the correct virtual machine in the answer area. Each Network Type may be used once, more than once, or not at all. Additionally, you may need to drag the split bar between panes or scroll to view content.
Select and Place:

Suggested Answer:
An external network, which provides communication between a virtual machine and a physical network by creating an association to a physical network adapter on the virtualization server.
An internal network, which provides communication between the virtualization server and virtual machines.
A private network, which provides communication between virtual machines only.
References: http://technet.microsoft.com/en-us/library/cc732470%28v=WS.10%29.aspx
