Exam 70-741 topic 1 question 157 discussion

Actual exam question from Microsoft's 70-741
Question #: 157
Topic #: 1
[All 70-741 Questions]

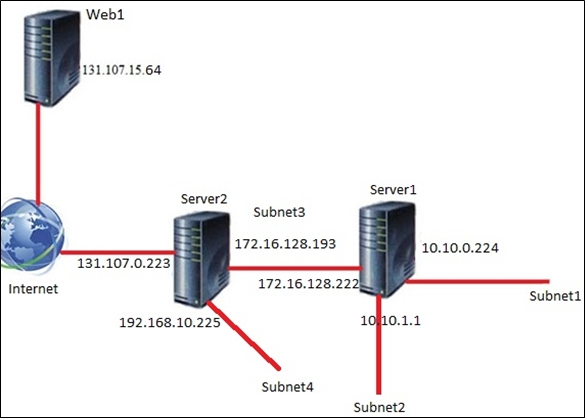

You are a network administrator for a company named Contoso, Ltd. The network is configured as shown in the exhibit.

You install the Remote Access server role on Server2. Server2 has the following configured:
✑ Network address translation (NAT)
✑ The DHCP Server server role
The Security Policy of Contoso states that only TCP ports 80 and 443 are allowed from the internet to Server2.
You identify the following requirements:
✑ Add 28 devices to subnet2 for a temporary project.
✑ Configure Server2 to accept VPN connections from the internet.
✑ Ensure that devices on Subnet2 obtain TCP/IP settings from DHCP on Server2.
What should you do to meet the DHCP connectivity requirement for Subnet2?

  • A. Install the Routing role service on Server2.
  • B. Install the IP address Management (IPAM) Server feature on Server2.
  • C. Install the Routing role service on Server1.
  • D. Install the DHCP Server server role on Server1.
Show Suggested Answer Hide Answer
Suggested Answer: D 🗳️
by dritter at March 4, 2019, 10:30 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Rene_Ha
Highly Voted 5 years, 6 months ago
I think, because subnet2 and subnet3 are different subnets. To get a DHCP lease from Server2, Server1 should be set up as DHCP relay agent. This can be done with the Routing Role service on Server1
upvoted 9 times
...
coleman
Highly Voted 5 years, 1 month ago
C. Install the Routing role service on Server1.
upvoted 7 times
coleman
5 years, 1 month ago
Routing role on Server1 supports DHCP Relay Agent. Install the Routing role service on Server1, and then on interface to Subnet2 with address 10.10.1.1, enable DHCP Relay Agent protocol to relay DHCP Discover messages received from Subnet2 to be sent to Server2 on Subnet3,
upvoted 4 times
lbs
4 years, 8 months ago
Agree. Correct answer is C
upvoted 3 times
Aldrid
3 years, 12 months ago
https://forsenergy.com/en-us/rras/html/44d8e108-7e12-42a0-adac-2e6624979185.htm The DHCP Relay Agent component relays DHCP messages between DHCP clients and DHCP servers on different IP networks. Because DHCP is a broadcast-based protocol, by default its packets do not pass through routers. A DHCP relay agent receives any DHCP broadcasts on the subnet and forwards them to the specified IP address on a different subnet. The DHCP Relay Agent is compliant with RFC 1542, "Clarifications and Extensions for the Bootstrap Protocol." For each IP network segment that contains DHCP clients, either a DHCP server or a computer acting as a DHCP Relay Agent is required.
upvoted 1 times
...
...
...
...
bakrii
Most Recent 3 years, 10 months ago
. Install the Routing role service on Server1.
upvoted 1 times
...
panda
3 years, 10 months ago
I think C, which is the Routing role service, is correct.I think the Routing role service is the LAN routing service. The LAN routing service includes DHCP Relay Agent as a protocol. Further DHCP Relay Agent isn't DHCP feature.
upvoted 1 times
...
simocb
3 years, 11 months ago
Answer C is correct
upvoted 1 times
...
panda
4 years ago
I think C is correct. I understand Routing Service Role is a part of Direct Access. Direct Access contains following services: -DirectAccess VPN(RAS) -Routing -WEB Application Proxy https://msftwebcast.com/2020/02/configure-lan-routing-in-windows-server-2019.html
upvoted 3 times
...
Robbr
4 years, 1 month ago
Which one is correct, have anyone get this question on the exam? because I have and I think I put the letter C and I'm not sure if I scored this Q as the correct answer.
upvoted 1 times
...
Jrhord
4 years, 2 months ago
Yep, this one reeks of relay agent on server1!!
upvoted 1 times
...
Kamikazekiller
4 years, 5 months ago
C. Install the Routing role service on Server1
upvoted 5 times
...
Pirateye
4 years, 7 months ago
C is the correct one
upvoted 5 times
...
GenjamBhai
4 years, 7 months ago
Because of this requirement, cannot install DHCP role on Server1 - Ensure that devices on Subnet2 obtain TCP/IP settings from DHCP on Server2. Install Routing role and make Server1 a DHCP Relay to relay messages between DHCP server and clients.
upvoted 3 times
...
Nhan
4 years, 10 months ago
You install the Remote Access server role on Server2. Server2 has the following configured: ✑ Network address translation (NAT) ✑ The DHCP Server server role the server 2 had already instralled DHCP server role, why install the server role second time? therefore, I would go with C, install routing service role on server1.
upvoted 3 times
...
SmackedWookiee
4 years, 11 months ago
Server 1 should already have the Routing role installed because subnet 1 is already there and we see there at least two NICs on Server 1, one of which is forwarding traffic to Server 2. Wouldn't the answer be B? Install IPAM to manage the DHCP scope for subnet 2?
upvoted 1 times
SmackedWookiee
4 years, 11 months ago
https://docs.microsoft.com/en-us/windows-server/networking/technologies/dhcp/dhcp-top - I see now why installing IPAM on Server 2 is incorrect. DHCP need to be installed on Server 1 to relay DHCP requests to Server 2. https://docs.microsoft.com/en-us/windows-server/networking/technologies/dhcp/dhcp-top
upvoted 2 times
...
...
xziomal9
5 years ago
Correct answer: C
upvoted 3 times
...
nomsboms
5 years, 2 months ago
Answer C is correct, like rsmallwo said
upvoted 2 times
...
psycho202
5 years, 4 months ago
The requirement: ✑ Ensure that devices on Subnet2 obtain TCP/IP settings from DHCP on Server2. What should you do to meet the DHCP connectivity requirement for Subnet2? => Because DHCP needs to be fulfilled by Server2, you configure Server1 to relay the DHCP requests to Server2. Answer C seems the most likely here to me.
upvoted 3 times
...
rsmallwo
5 years, 5 months ago
I think the answer is C, The relay agent can join the DHCP requests from differnet sbunets as per: https://www.itechguides.com/dhcp-relay-agent-configuration-in-windows-server-2016/ Its answer C rather than A as the Relay needs to be in the middle of the subnets and this is server 1
upvoted 6 times
...
