Avaya 7130X Exam Actual Questions

The questions for 7130X were last updated on March 20, 2024.
  • Viewing page 1 out of 17 pages.
  • Viewing questions 1-4 out of 68 questions

Topic 1 - Single Topic

Question #1 Topic 1

Before SIP Trunking configuration can begin, which state must the Avaya Session Border Controller for Enterprise (SBCE) be in?

  • A. Registered
  • B. Provisioned
  • C. Commissioned
  • D. Ready
Reveal Solution Hide Solution   Discussion   1

Correct Answer: C 🗳️

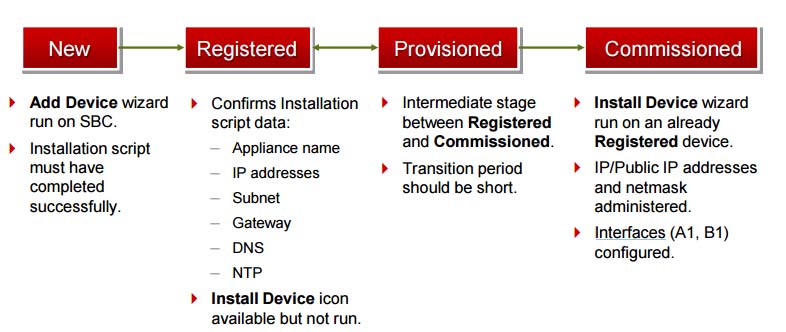

Prerequisite Conditions for SIP Trunking
Starting point for SIP-trunking administration:
System Management > Installed tab shows SBC(s) Commissioned indicates a successful initial console configuration.
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 302

Question #2 Topic 1

After the initial provisioning script has been run you see your Avaya Session Border Controller for Enterprise (SBCE) displaying a Registered state in the Web
GUI. You click on the install link in the EMS System Management > Devices menu to continue the installation.
After displaying a status of Provisioning for a short while, which status does the SBCE display?

  • A. Commissioned
  • B. Up
  • C. Busyout
  • D. Maintenance-Busy
Reveal Solution Hide Solution   Discussion   2

Correct Answer: A 🗳️

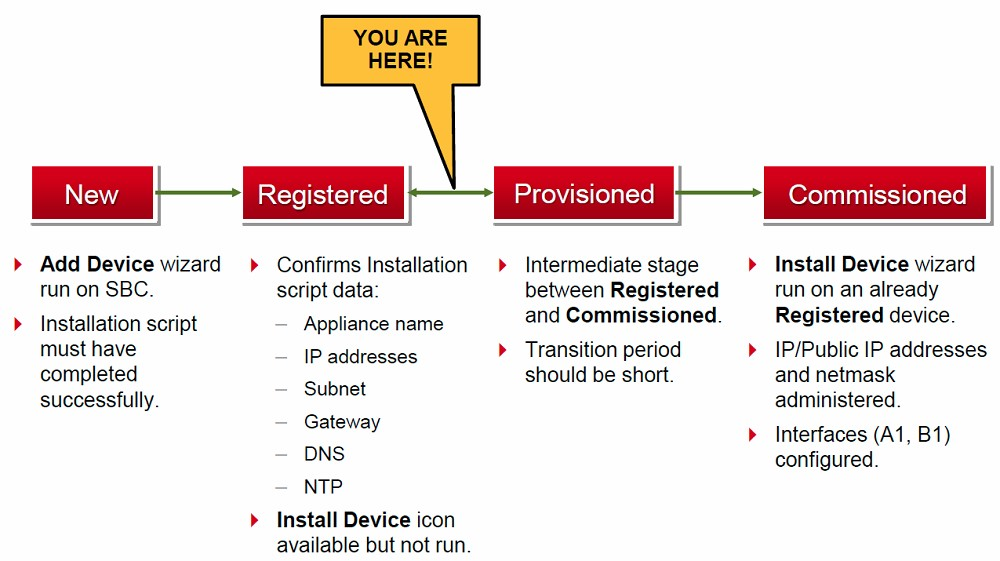

SBC states:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 201

Question #3 Topic 1

From a remote workers SIP Endpoint connected via Mobile Workspace, which tool is used to trace the successful way through Avaya Session Border Controller for Enterprise (SBCE) of an Invite message?

  • A. traceRT
  • B. traceSM
  • C. traceMW
  • D. traceSBC
Reveal Solution Hide Solution   Discussion   3

Correct Answer: B 🗳️
traceSM is an interactive perl script that allows an administrator to capture, view, and save call processing activity on a Session Manager. While not as powerful or versatile as wireshark, traceSM is absolutely essential when it comes to working with Avaya SIP. First off, it allows you to view SIP messages even if they have been encrypted with TLS.
Incorrect Answers:
D: traceSBC is a Perl script that is run from a PuTTY or TuTTY session connected to the SBCs Management (M1) IP address. It is used to monitor sessions.
References:
https://andrewjprokop.wordpress.com/2014/06/02/a-necessary-guide-to-the-avaya-tracesm-utility/

Question #4 Topic 1

The provisioning script automatically runs as part of the first boot-up of the Avaya Session Border Controller for Enterprise (SBCE). During this process you assign the Management IP address to the SBCE. You browse to the Element Management System (EMS) to continue to install the SBCE.
On the System Management > Devices web page, which status does the SBCE display before the Install link is clicked?

  • A. Ready
  • B. Provisioned
  • C. Registered
  • D. Commissioned
Reveal Solution Hide Solution   Discussion   1

Correct Answer: C 🗳️

References: Avaya Aura Session Border Controller Enterprise (2012), page 201
