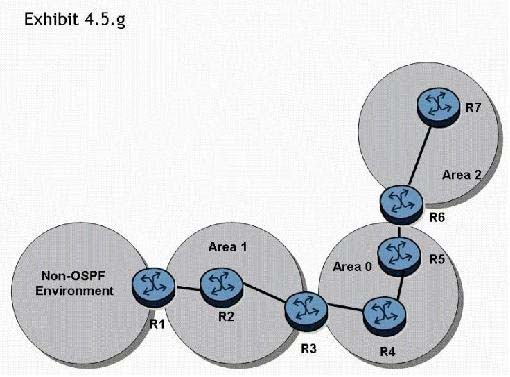

Click the exhibit button. In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding type 4 LSA generation is true?
A.
Router R1 generates a type 4 LSA that is flooded to areas 0, 1, and 2.
B.
Router R3 generates a type 4 LSA that is flooded to areas 0, 1, and 2.
C.
Router R3 generates a type 4 LSA that is flooded to areas 0 and 2.
D.
Router R3 generates a type 4 LSA that is flooded to area 0, and router R6 generates a type 4 LSA that is flooded to area 2.
