Exam 4A0-107 topic 1 question 95 discussion

Actual exam question from Alcatel-Lucent's 4A0-107

Question #: 95
Topic #: 1

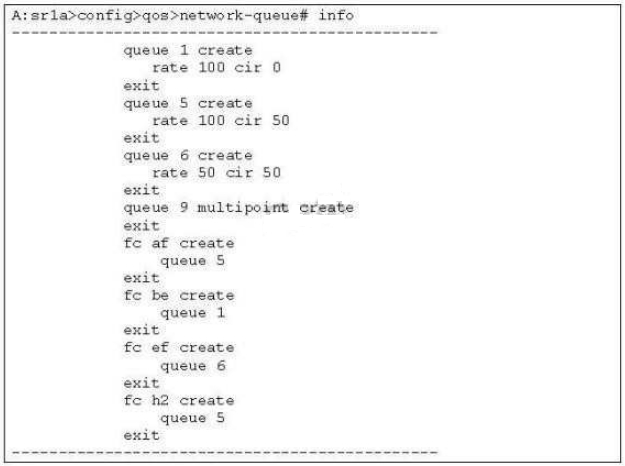

Click the exhibit button below. A network operator has configured a network-queue policy to map forwarding classes to queues, as shown in the exhibit below.
Based on the default scheduling behavior of the Alcatel-Lucent 7750 SR, in which order will packets be serviced?

A. All in-profile packets in round-robin, then all out-of-profile packets in biased round-robin.
B. In-profile EF packets, then in-profile H2 packets, then in-profile AF packets, then out-of-profile EF packets, then out-of-profile H2 and AF packets, and then out- of-profile BE packets.
C. In-profile EF, H2 and AF packets, then out-of-profile H2, AF and BE packets in biased round-robin.
D. In-profile EF packets, then in-profile H2 and AF packets, then out-of-profile H2, AF and BE packets in biased round-robin.
E. In-profile EF and H2 packets, then in-profile AF packets, then out-of-profile H2, AF and BE packets in biased round-robin.

Show Suggested Answer

Suggested Answer: D 🗳️
