Exam 350-501 topic 1 question 305 discussion

Actual exam question from Cisco's 350-501
Question #: 305
Topic #: 1
[All 350-501 Questions]

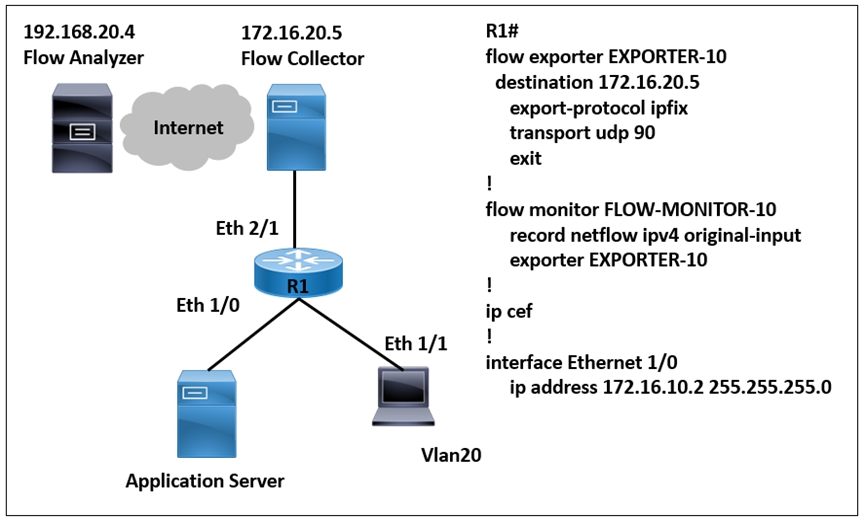

Refer to the exhibit. A network engineer wants to monitor traffic from the application server and send the output to the external monitoring device at 172.16.20.5.
Application server traffic should pass through the R1 Eth2/1 interface for further analysis after it is monitored. Which configuration must be applied on the R1 router?

  • A. Configure the FLOW-MONITOR-20 command.
  • B. Configure the flow exporter EXPORTER-10 destination 192.168.20.4 command.
  • C. Configure the ip flow monitor FLOW-MONITOR-10 input command on the Ethernet1/0 interface.
  • D. Configure the ip flow monitor FLOW-MONITOR-10 output command on the Ethernet 2/1 interface.
Show Suggested Answer Hide Answer
Suggested Answer: C 🗳️
by thejag at March 9, 2023, 9:24 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
nerdymarwa
1 year, 4 months ago
sometimes when it's too simple... you get afraid :) Cisco + being straightforward with their questions = once in a blue moon :))
upvoted 3 times
...
thejag
1 year, 8 months ago
Selected Answer: C
This is simpler than it sounds. We are just monitoring the traffic for the server on Eth1/0 and sending it via the flow exporter to 172.16.20.5 which is on Eth2/1
upvoted 3 times
cocopost
7 months, 3 weeks ago
Agree answer C. But there is still some confusion in the wording of the question. It says "Application server traffic should pass through the R1 Eth2/1 interface for further analysis after it is monitored" But the server traffic is not going to the flow collector! Thats a dead end. Application server data is going out to the desistination determined by the application. It is only the Netflow data which is going to the flow collector. This is unfortunately another poorly written question. But of course looking at the topology, the correct answer must be C.
upvoted 1 times
...
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
