Exam 200-301 topic 1 question 702 discussion

Actual exam question from Cisco's 200-301
Question #: 702
Topic #: 1
[All 200-301 Questions]

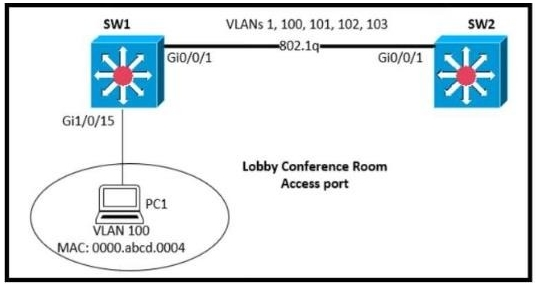

SW1 supports connectivity for a lobby conference room and must be secured. The engineer must limit the connectivity from PC1 to the SW1 and SW2 network.
The MAC addresses allowed must be limited to two. Which configuration secures the conference room connectivity?

  • A. interface gi1/0/15 switchport port-security switchport port-security maximum 2
  • B. interface gi1/0/15 switchport port-security switchport port-security mac-address 0000.abcd.0004vlan 100
  • C. interface gi1/0/15 switchport port-security mac-address 0000.abcd.0004 vlan 100
  • D. interface gi1/0/15 switchport port-security mac-address 0000.abcd.0004 vlan 100 interface switchport secure-mac limit 2
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️
by DaimonANCC at April 8, 2023, 10:50 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Elmasquentona963
Highly Voted 1 year, 7 months ago
Selected Answer: A
The key phrase is: "The MAC addresses allowed must be limited to two". So, a port-security with a maximum of 2 allowed MAC address in the "Secure Source MAC table" will be needed. Therefore, A is the answer. Configuration: Switch(config-if)# gi1/0/15 Switch(config-if)# switchport mode access Switch(config-if)# switchport port-security Switch(config-if)# switchport port-security maximum 2
upvoted 7 times
...
[Removed]
Most Recent 1 year, 1 month ago
Selected Answer: A
A is correct
upvoted 2 times
...
Nmk3216
1 year, 5 months ago
Selected Answer: A
A is the correct answer. The MAC addresses allowed must be limited to two. Therefore the command must be interface gi1/0/15 switchport port-security switchport port-security maximum 2
upvoted 2 times
...
NewJeans
1 year, 7 months ago
Selected Answer: A
Obviously the answer is A
upvoted 1 times
...
Gotcha
1 year, 8 months ago
Selected Answer: C
Dear Friends. The only configuration that I can do is de C option. I tested with Packet Tracer, and these are the lines: Switch(config-if)#switchport port-security mac-address 0000.abcd.0004 Port-security not enabled on interface FastEthernet0/15. Switch(config-if)#vlan 100 I could see that the command "switchport port-security switchport port-security" does not exist. This is the option in Packet Trace to "switchport port-security" command : Switch(config-if)#switchport port-security ? aging Port-security aging commands mac-address Secure mac address maximum Max secure addresses violation Security violation mode
upvoted 1 times
Elmasquentona963
1 year, 7 months ago
Did you said? I could see that the command "switchport port-security switchport port-security" does not exist. Man, there is no a correct separation between those commands due to the question format. However, they are correct indeed. Let me show you how would be: Switch(config-if)# switchport port-security Switch(config-if)# switchport port-security maximum 2 So, A is correct.
upvoted 2 times
[Removed]
1 year, 7 months ago
you are right
upvoted 1 times
...
...
...
Eallam
1 year, 10 months ago
Selected Answer: A
no command is called switchport secure-mac
upvoted 1 times
...
sekvenca
1 year, 10 months ago
A can't be right ! It doesn't specify either the MAC address nor does it specify to use sticky, So you just set up port security but no MAC address is gonna be picked up ! D
upvoted 1 times
picho707
1 year, 6 months ago
D cannot be the answer because secure-mac is not a valid command.
upvoted 1 times
...
...
4aynick
2 years ago
correct answer - A
upvoted 2 times
...
DaimonANCC
2 years, 1 month ago
chatgpt wrote the right question С
upvoted 1 times
hadi_dlz
7 months, 3 weeks ago
There is chat GPT 4o has answered. The correct configuration to secure the connectivity for the conference room, limit the MAC addresses to two, and secure PC1's connectivity from SW1 to SW2 is: A. bash interface gi1/0/15 switchport port-security switchport port-security maximum 2 Explanation: switchport port-security enables port security on the interface. switchport port-security maximum 2 limits the number of allowed MAC addresses to 2. This will allow only two devices (MAC addresses) to connect through this port. Options B, C, and D are either incomplete or incorrect because they don't fully address the requirement to limit the number of MAC addresses to two.
upvoted 1 times
...
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
