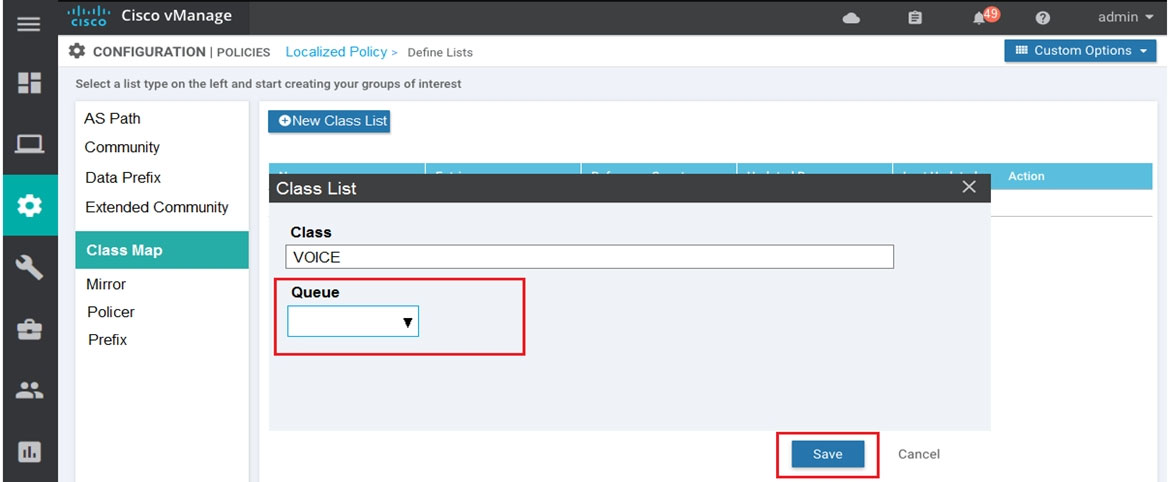

Refer to the exhibit. A network administrator is setting the queueing value for voice traffic for one of the WAN Edge routers using vManager GUI. Which queue value must be set to accomplish this task?
Found new information:
Repeat the last three steps to add more class lists as required. The following are example class lists and queue mappings:
Table 1. Class List and Queue Mappings
Class Queue
VOICE
0
CRTICAL_DATA
1
BULK
2
CLASS_DEFAULT
3
INTERACTIVE_VIDEO
4
CONTROL SIGNALING
5
https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/qos/ios-xe-17/qos-book-xe/forwarding-qos.html#:~:text=Cisco%20SD%2DWAN%20Forwarding%20and%20QoS%20Overview,-Forwarding%20takes%20the&text=It%20specifies%20the%20interface%20through,IPsec%20connections%20between%20the%20routers.
Also found this following cisco live: https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2019/pdf/5eU6DfQV/LTRRST-2457-LG.pdf
Page 25
Given answer is correct --> 0
disregard my last comment.
On Cisco vEdge devices and Cisco IOS XE SD-WAN devices, each interface has eight queues, which are numbered 0 to 7. Queue 0 is reserved, and is used for both control traffic and low-latency queuing (LLQ) traffic. For LLQ, any class that is mapped to queue 0 must also be configured to use LLQ. Queues 1 to 7 are available for data traffic
Queue 0 is reserved for control plane traffic and voice traffic would fall under the data traffic segment which is from 1 to 7.
Answer should be B -1
It's A, queue 0, LLQ .. voice with control traffic are the most critical
upvoted 1 times
...
...
