Exam 300-075 topic 1 question 218 discussion

Actual exam question from Cisco's 300-075

Question #: 218
Topic #: 1

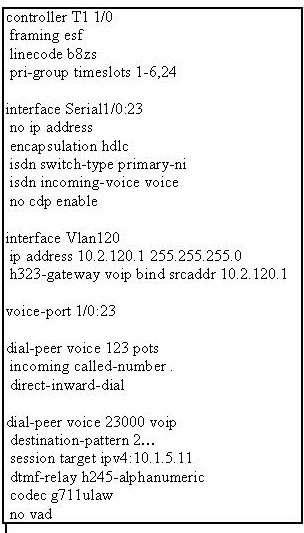

Refer to the exhibit.

IT shows an H.323 gateway configuration in a Cisco Unified Communications Manager environment. An inbound PSTN call to this H.323 gateway fails to connect to IP phone extension 2001. The PSTN user hears a reorder tone. Debug isdn q931 on the H.323 gateway shows the correct called-party number as 5015552001.
Which two configuration changes can correct this issue? (Choose two.)

A. Add port 1/0:23 to dial-peer voice 123 pots.
B. Ensure that the Significant Digits for inbound calls on the H.323 gateway configuration is 4.
C. Add a voice translation profile to truncate the number from 10 digits to 4 digits. Apply the voice translation profile to the Voice-port. The configuration field "Significant Digits for inbound calls" is left at default (All).
D. Add the command h323-gateway voip id on interface vlan120.
E. Change the destination-pattern on the dial-peer voice 23000 VoIP to 501501? and change the Significant Digits for inbound calls to 4.

Show Suggested Answer

Suggested Answer: BE 🗳️
Choose the number of significant digits to collect, from 0 to 32. Cisco Unified Communications Manager counts significant digits from the right (last digit) of the number that is called.

by polypan at Dec. 24, 2019, 7:54 a.m.

Comments

Submit Cancel

polypan

5 years, 4 months ago

Should be A. You need to specify the port under the dial-peer. And E. The destination pattern on voip dial-peer should be 5015552001 not 2…

upvoted 2 times

...
