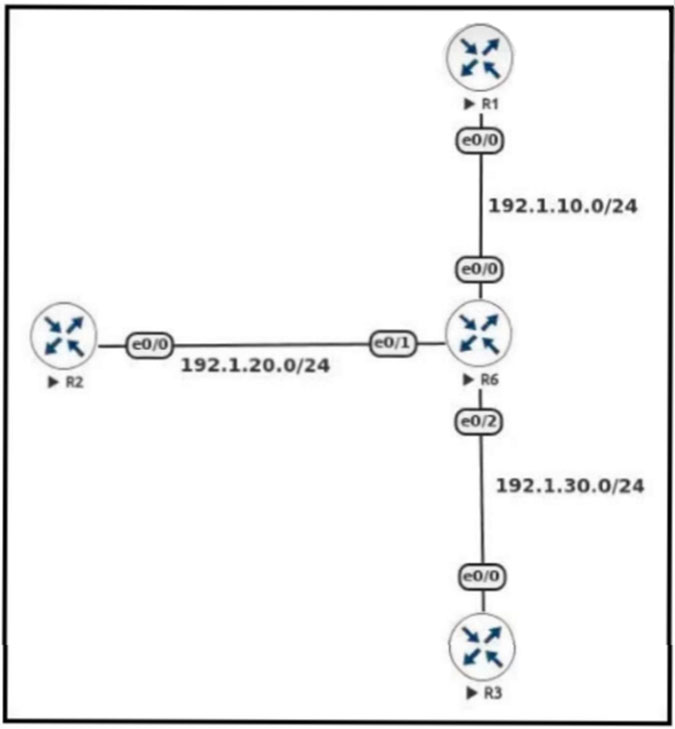

Refer to the exhibit. An engineer must configure DMVPN Phase 3 hub-and-spoke topology to enable a spoke-to-spoke tunnel. Which NHRP configuration meets the requirement on R6?
A.
interface Tunnel1 ip nhrp authentication Cisco123 ip nhrp map multicast dynamic ip nhrp network-id 1 ip nhrp holdtime 300 ip nhrp redirect
B.
interface Tunnel 1 ip address 192.168.1.1 255.255.255.0 tunnel source e 0/1 tunnel mode gre multipoint ip nhrp network-id 1 ip nhrp map 192.168.1.2 192.1.20.2
C.
interface Tunnel1 ip nhrp authentication Cisco123 ip nhrp map multicast dynamic ip nhrp network-id 1 ip nhrp holdtime 300 ip nhrp shortcut
D.
Interface Tunnel 1 ip address 192.168.1.1 255.255.255.0 tunnel source e 0/0 tunnel mode gre multipoint ip nhrp network-id 1
Is it not required to add the command “tunnel mode gre multipoint “ on the hub router
upvoted 2 times
...
