Exam 200-301 topic 1 question 598 discussion

Actual exam question from Cisco's 200-301
Question #: 598
Topic #: 1
[All 200-301 Questions]

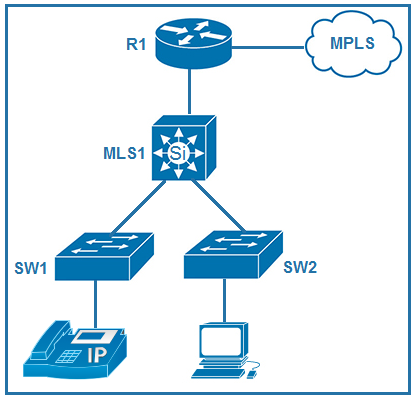

Refer to the exhibit. Which plan must be implemented to ensure optimal QoS marking practices on this network?

  • A. Trust the IP phone markings on SW1 and mark traffic entering SW2 at SW2
  • B. As traffic traverses MLS1 remark the traffic, but trust all markings at the access layer
  • C. Remark traffic as it traverses R1 and trust all markings at the access layer.
  • D. As traffic enters from the access layer on SW1 and SW2, trust all traffic markings.
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️
by ac89l at May 12, 2023, 5:59 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
[Removed]
8 months, 4 weeks ago
Selected Answer: A
A is correct
upvoted 1 times
...
PaddyInNZ
1 year, 1 month ago
Selected Answer: A
The IP phone will mark the voice traffic at the phone, so trust this on SW1. The PC traffic will need to be marked at SW2. Marking is occurring as close to the edge as possible without client intervention. Option ‘A’ correctly identifies this.
upvoted 3 times
...
no_blink404
1 year, 6 months ago
I am pretty sure all/most of the traffic marking should be done on the lower layers ie access layer. Answer A seems correct.
upvoted 2 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
