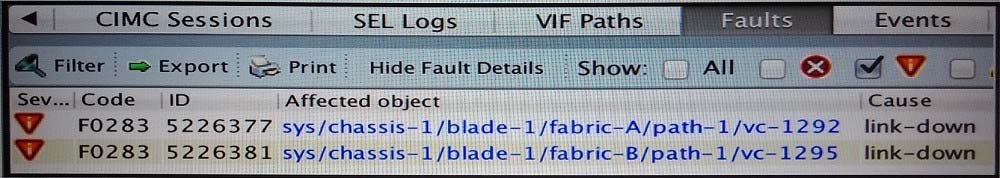

Refer to the exhibit. After you deploy a service profile from a template, you encounter these two errors. Which action is needed to resolve this issue?
A.
Remove the server from maintenance mode.
B.
Install an operating system.
C.
Reassociatethe service profile.
D.
Reset the server in the server General subtab.
E.
Associate a vNIC template to the service profile template.
A. Remove the server from maintenance mode. (Not a valid option)
B. Install an operating system. (Correct Answer: OS drivers are required to bring links up. This is the common issue that causes fault code F0283)
C. Reassociate the service profile. (This does not change the state if the profile is the same. Status is state not configuration)
D. Reset the server in the server General subtab. (Power state is unknown. Correct option would provide the current state)
E. Associate a vNIC template to the service profile template. (A vNIC template optional and is not required for a service profile. Current information does not provide enough information to idenify if one is in use.)
MasterDebug, agreed, I don't know which is correct but don't see why it is OS related. VIF would be vNIC, which goes with link-down and the only one is D related to vNIC. still not clear though!
fltDcxVcDown
Fault Code:F0283
Message
[transport] VIF [chassisId] / [slotId] [switchId]-[id] down, reason: [stateQual][transport] VIF [chassisId]
/ [id] [switchId]-[id] down, reason: [stateQual]
Explanation
The transport VIF for server is down.The Cisco UCS Manager raises this fault when any of the following
scenario occur:
• Endpoint(switch/fabric interconnect) reports the connectivity state on virtual interface as one of:
a.down, b.errored, c.unavailable.
Recommended Action
If you see this fault, take the following actions:
Step 1 If the fault occurs in the Cisco UCS Manager GUI, capture one or more screenshots of the fault message
and other related areas.
Step 2 Verify that the blade discovery was completed successfully. Check the states on all of the communicating
ports in an end to end manner.
Step 3 If connectivity seems correct, recommision the server.
Step 4 Execute the show tech-support command and contact Cisco Technical Support.
