Exam 300-101 topic 2 question 39 discussion

Actual exam question from Cisco's 300-101

Question #: 39
Topic #: 2

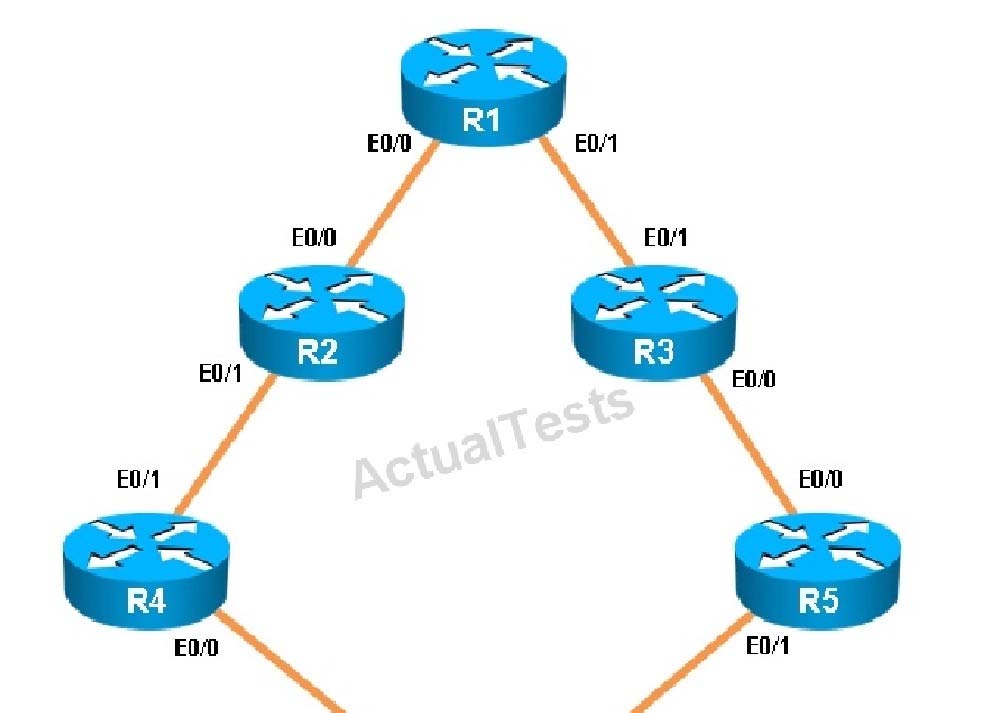

You have been asked to evaluate how EIGRP is functioning in a customer network.

What percent of R1's interfaces bandwidth is EIGRP allowed to use?

A. 10
B. 20
C. 30
D. 40

Show Suggested Answer

Suggested Answer: B 🗳️

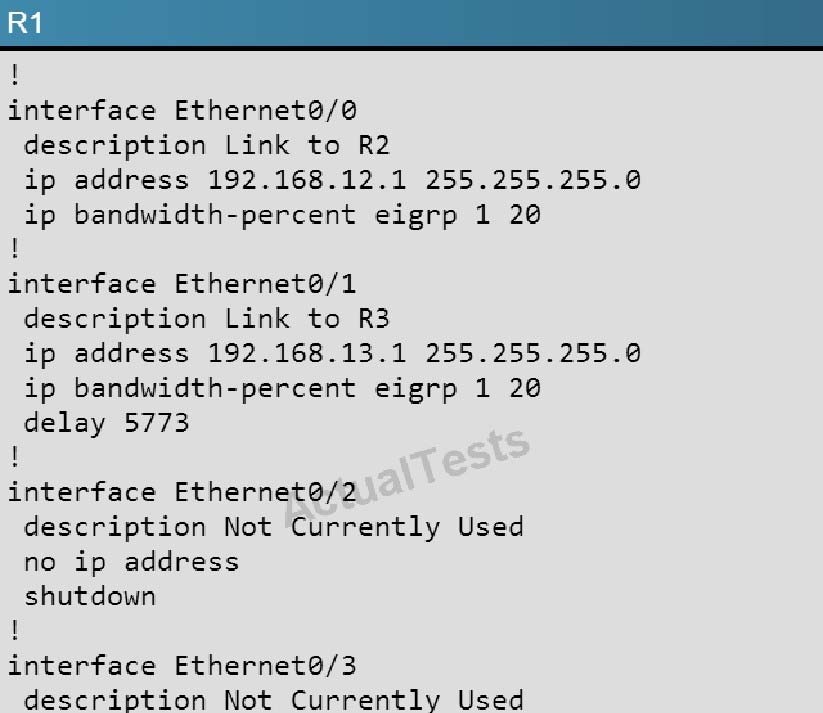

The relevant configuration of R1 is shown below:

ip bandwidth-percent eigrp 1 20
1 = the EIGRP AS
20 = 20% of the bandwidth

by diegonamaste at Feb. 8, 2020, 11:09 p.m.

Comments

Submit Cancel

diegonamaste

5 years, 4 months ago

show ip eigrp interfaces detail

upvoted 1 times

Border_Router#show ip eigrp interfaces detail EIGRP-IPv4 Interfaces for AS(65001) Xmit Queue PeerQ Mean Pacing Time Multicast Pending Interface Peers Un/Reliable Un/Reliable SRTT Un/Reliable Flow Timer Routes Et0/1 1 0/0 0/0 1027 0/6 5128 0 Hello-interval is 5, Hold-time is 15 Split-horizon is enabled Next xmit serial <none> Packetized sent/expedited: 4/0 Hello's sent/expedited: 796/2 Un/reliable mcasts: 0/4 Un/reliable ucasts: 4/2 Mcast exceptions: 0 CR packets: 0 ACKs suppressed: 0 Retransmissions sent: 1 Out-of-sequence rcvd: 0 Topology-ids on interface - 0 Interface BW percentage is 20 Authentication mode is not set Border_Router#

upvoted 1 times

...
