Exam 300-101 topic 2 question 343 discussion

Actual exam question from Cisco's 300-101
Question #: 343
Topic #: 2
[All 300-101 Questions]

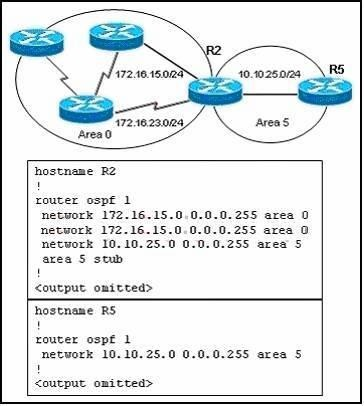

Refer to the exhibit.

On the basis of the configuration provided, how are the Hello packets sent by R2 handled by R5 in OSPF area 5?

  • A. The Hello packets will be exchanged and adjacency will be established between routers R2 and R5.
  • B. The Hello packets will be exchanged but the routers R2 and R5 will become neighbors only.
  • C. The Hello packets will be dropped and no adjacency will be established between routers R2 and R5.
  • D. The Hello packets will be dropped but the routers R2 and R5 will become neighbors.
Show Suggested Answer Hide Answer
Suggested Answer: C 🗳️
The point of this question is the conditions of OSPF establish adjacency relationship. For ospf, the optional capabilities must set the same between neighbors, but from the exhibit, R5 was configured as a stub area while R2 in area 0 is a normal area. So there will be no adjacent relationship established between routers R2 and R5.
by Nemanja at Feb. 11, 2020, 9:11 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Nemanja
5 years, 3 months ago
From the configuration output there is seen that R2 is configured with a "stub" keyword for Area 5 and R5 is not configured with the very same keyword "... stub".
upvoted 2 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
