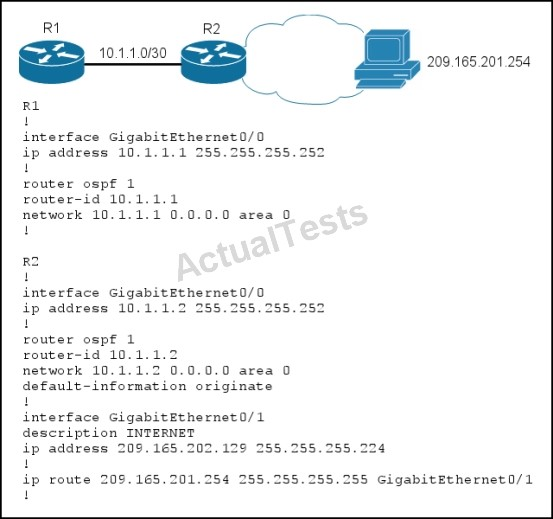

Refer to the exhibit. Routers R1 and R2 are configured as shown, and traffic from R1 fails to reach host 209.165.201.254. Which action can you take to correct the problem? "Pass Any Exam. Any Time." - www.actualtests.com 24
A.
Ensure that R2 has a default route in its routing table.
B.
Change the OSPF area type on R1 and R2.
C.
Edit the router configurations so that address 209.165.201.254 is a routable address.
D.
Remove the default-information originate command from the OSPF configuration of R2.
Suggested Answer:A🗳️
Not sure that any of these answers are correct, it appears that this configuration is valid for reaching that one specific host IP. Answer A does have a route to that host so it would not need a default route to get to it. Choice B is incorrect as the area types have nothing to do with this. C is incorrect as that IP address is routable, and D is needed so that R1 will have a default route advertised to it from R2 so that it can reach this destination.
A is correct. The router will not advertise the route to the host because there is not a network statement for the 209.165.202.x network in OSPF. And there has to be a default route in the routing table for the "default-information originate" command to advertise that default route in OSPF. Unless you use the "default-information originate always" command, then it will always advertise a default route into OSPF.
upvoted 1 times
...
