You have been asked to evaluate how EIGRP is functioning in a customer network.

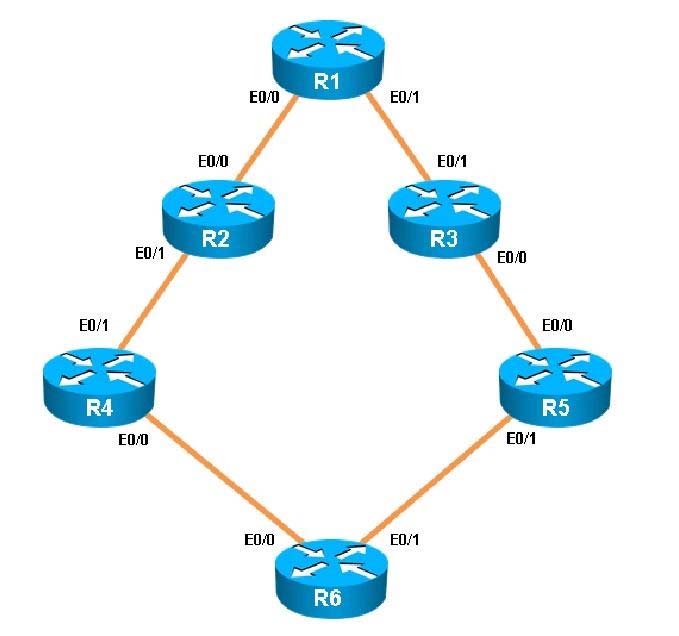

Traffic from R1 to R61 s Loopback address is load shared between R1-R2-R4-R6 and R1-R3- R5-R6 paths. What is the ratio of traffic over each path?

  • A. 1:1
  • B. 1:5
  • C. 6:8
Show Suggested Answer Hide Answer
Suggested Answer: D. 19:80 🗳️
First, find the IP address of the loopback0 interface on R6:

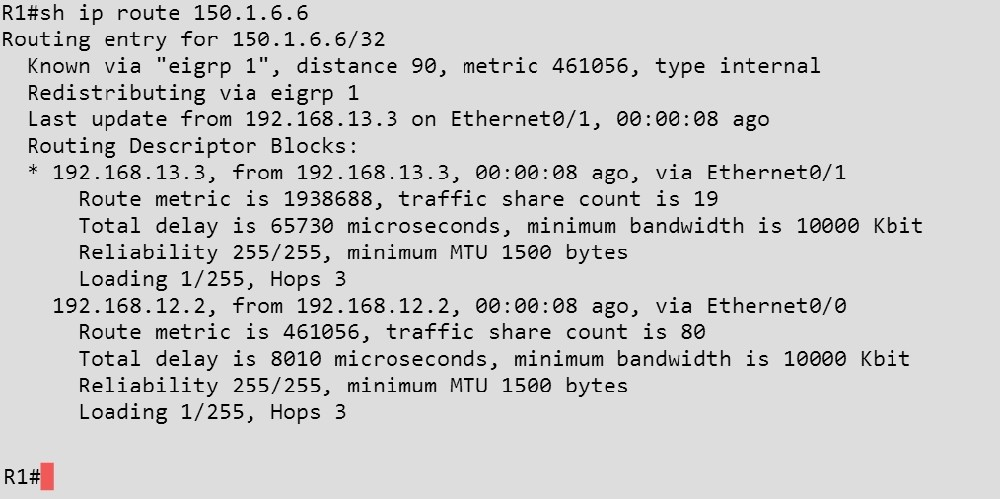

We see that it is 150.1.6.6, so we issue the show ip route 150.1.6.6 command from R1 and see this:

Notice the traffic share count shows 19 for the first path, and 80 for the second path.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Nemanja
5 years, 4 months ago
D. 19:80
upvoted 2 times
...
