Exam 300-101 topic 2 question 499 discussion

Actual exam question from Cisco's 300-101

Question #: 499
Topic #: 2

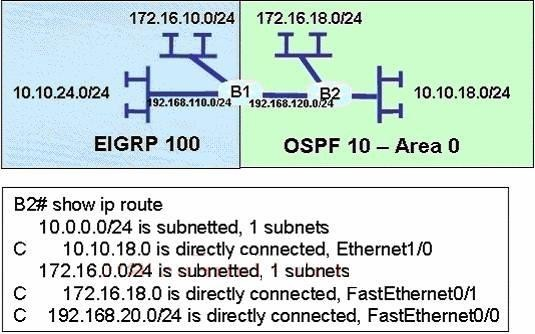

Refer to the exhibit. The network administrator is trying to configure mutual redistribution between EIGRP and OSPF. Autosummarization in EIGRP 100 AS is disabled. After adding OSPF configuration to router B1, the network administrator checked the routing table of router B2, but none of the EIGRP routes appeared there. To redistribute the EIGRP AS 100 routes into OSPF, which command should be added, or edited, on router B1 under router ospf 10?

A. redistribute eigrp 100 metric-type 1
B. redistribute eigrp 100 subnets
C. no auto-summary 10.0.0.0 255.0.0.0

Show Suggested Answer

Suggested Answer: D. area 0 range 10.10.0.0 255.255.0.0 🗳️
Explanation -
When redistributing into OSPF without keyword subnets, only classful networks will be redistributed. Classful networks here mean networks with the default major subnet masks (for example 10.0.0.0/8; 180.1.0.0/16; 200.200.200.0/24...).
In fact, the routing table on the exhibit above is not totally correct. The network 192.168.110.0/24 will be redistributed and shown in the routing table of B2 even if the keyword subnets is not used because it belongs to class C with the default subnet mask of class C.
To make all the networks, including subnets appear in the routing table of B2 we must use keyword subnets when redistributing into OSPF. This is also an important thing to remember when redistributing into OSPF.

by Nemanja at Feb. 13, 2020, 7:33 p.m.

Comments

Submit Cancel

Nemanja

5 years, 4 months ago

B. redistribute eigrp 100 subnets

upvoted 2 times

...
