Exam 300-101 topic 2 question 501 discussion

Actual exam question from Cisco's 300-101
Question #: 501
Topic #: 2
[All 300-101 Questions]

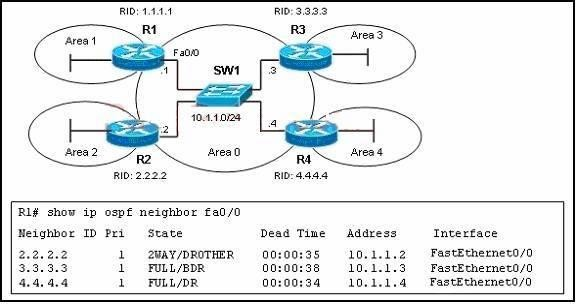

Refer to the exhibit. OSPF is configured on all routers in the network. On the basis of the show ip ospf neighbor output, what prevents R1 from establishing a full adjacency with R2?

  • A. Router R1 will only establish full adjacency with the DR and BDR on broadcast multiaccess networks.
  • B. Router R2 has been elected as a DR for the broadcast multiaccess network in OSPF area
  • C. Routers R1 and R2 are configured as stub routers for OSPF area 1 and OSPF area 2.
  • D. Router R1 and R2 are configured for a virtual link between OSPF area 1 and OSPF area 2.
Show Suggested Answer Hide Answer
Suggested Answer: E. The Hello parameters on routers R1 and R2 do not match. 🗳️
Explanation -
From the output, we learn that R4 is the DR and R3 is the BDR so other routers will only establish full adjacency with these routers. All other routers have the two- way adjacency established.
by Nemanja at Feb. 13, 2020, 7:38 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Nemanja
5 years, 4 months ago
A. Router R1 will only establish full adjacency with the DR and BDR on broadcast multiaccess networks.
upvoted 2 times
...
