Exam 300-101 topic 2 question 579 discussion

Actual exam question from Cisco's 300-101

Question #: 579
Topic #: 2

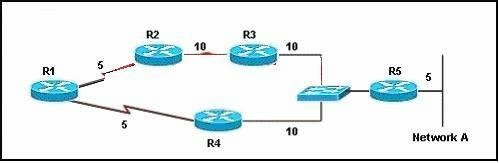

Refer to the exhibit. EIGRP has been configured on all routers in the network. The command metric weights 0 0 1 0 0 has been added to the EIGRP process so that only the delay metric is used in the path calculations. Which router will R1 select as the successor and feasible successor for Network A?

A. R4 becomes the successor for Network A and will be placed in the routing table. R2 becomes the feasible successor for Network A.
B. R4 becomes the successor for Network A and will be included in the routing table. No feasible successor will be selected as the advertised distance from R2 is higher than the feasible distance.
C. R2 becomes the successor and will be placed in the routing table. R4 becomes the feasible successor for Network A.
D. R2 becomes the successor and will be placed in the routing table. No feasible successor will be selected as the reported distance from R4 is lower than the

Show Suggested Answer

Suggested Answer: feasible distance. 🗳️
The point of the question is DUAL of EIGRP.

FD=5+10+5=20 -

R4 is successor -
No FS, because no other router's AD is lower the FD

by Nemanja at Feb. 14, 2020, 9:16 p.m.

Comments

Submit Cancel

Nemanja

5 years, 4 months ago

B. R4 becomes the successor for Network A and will be included in the routing table. No feasible successor will be selected as the advertised distance from R2 is higher than the feasible distance.

upvoted 2 times

...
