Actual exam question from Cisco's 300-101
Question #: 580
Topic #: 2
[All 300-101 Questions]

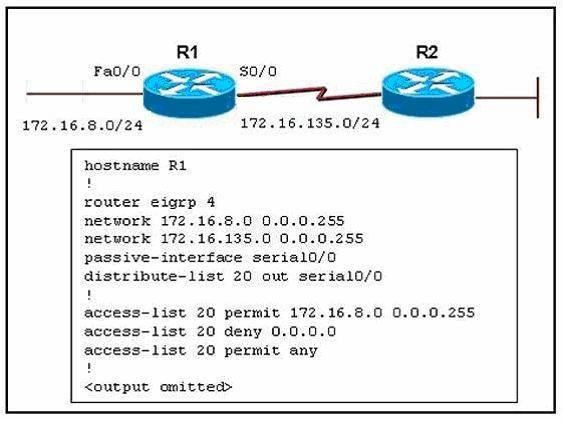

Refer to the exhibit.

Routers R1 and R2 are running EIGRP and have converged. On the basis of the information that is presented, which statement is true?

  • A. All outgoing routing updates from router R1 to router R2 will be suppressed, but the inbound updates will continue to be received.
  • B. All incoming routing updates from R2 will be suppressed, but the outgoing updates will continue to be sent.
  • C. Both outgoing and incoming routing updates on R1 will be stopped because of the passive- interface Serial0/0 configuration statement.
  • D. Both outgoing and incoming routing updates on R1 will be permitted because the distribute-list 20 out Serial0/0 command cannot be used with association with
Show Suggested Answer Hide Answer
Suggested Answer: the outgoing interface. 🗳️
You can use the passive-interface command to control the advertisement of routing information. The command enables the suppression of routing updates over some interfaces while it allows updates to be exchanged normally over other interfaces. With most routing protocols, the passive-interface command restricts outgoing advertisements only. However, when used with Enhanced Interior Gateway Routing Protocol (EIGRP), the effect is slightly different. With EIGRP running on a network, the passive- interface command stops both outgoing and incoming routing updates, since the effect of the command causes the router to stop sending and receiving hello packets over an interface.
Reference:
http://www.cisco.com/en/US/tech/tk365/technologies_tech_note09186a0080093f0a.shtml
by Nemanja at Feb. 14, 2020, 9:18 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Nemanja
5 years, 4 months ago
C. Both outgoing and incoming routing updates on R1 will be stopped because of the passive- interface Serial0/0 configuration statement.
upvoted 2 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
