Exam 300-101 topic 2 question 583 discussion

Actual exam question from Cisco's 300-101

Question #: 583
Topic #: 2

[All 300-101 Questions]

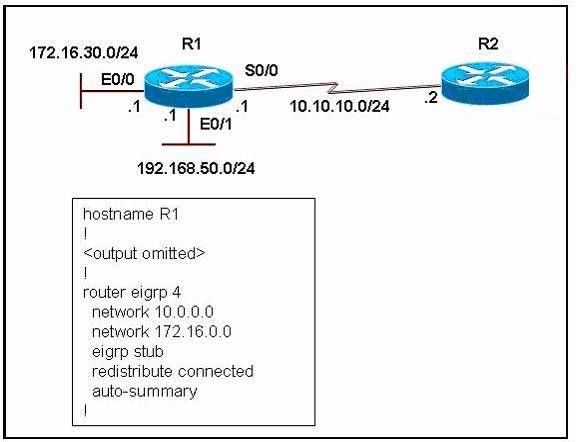

Refer to the exhibit.

Which two statements are true? (Choose two.)

A. The eigrp stub command prevents queries from being sent from R2 to R1.
B. The eigrp stub command will automatically enable summarization of routes on R2.
C. The eigrp stub command prevents all routes except a default route from being advertised to R1.
D. Router R1 will advertise connected and summary routes only.
E. Router R1 will advertise connected and static routes. The sending of summary routes will not be permitted.

Show Suggested Answer

Suggested Answer: F. Router R1 is configured as a receive-only neighbor and will not send any connected, static or summary routes. 🗳️
Explanation -
The command eigrp stub turns R1 into a stub router so R2 will never send any query to R1 because R2 knows that a stub router will only route packets for networks it has explicitly advertised.
The command eigrp stub is same as eigrp stub connected summary command because connected and summarized routes are advertised by default.
Note: Because the network 192.168.50.0 is not advertised by network statement, it is necessary to redistribute connected route with the redistribute connected command.

by Nemanja at Feb. 14, 2020, 9:24 p.m.

Comments

Submit Cancel

Nemanja

5 years, 4 months ago

A. The eigrp stub command prevents queries from being sent from R2 to R1. D. Router R1 will advertise connected and summary routes only.

upvoted 2 times

...
