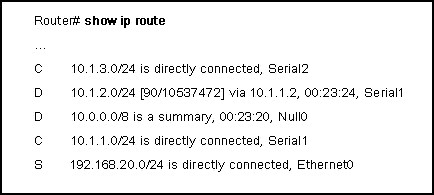

Refer to the exhibit.

What happens when the router stops receiving advertisements for the 10.1.2.0/24 network?

A. The summary route will be removed from the table.
B. The summary route will remain in the table.
C. The more specific routes will be advertised from the table.

Show Suggested Answer

Suggested Answer: D. 10.1.2.0/24 will still be advertised but packets destined for it will be dropped when they reach this router. 🗳️
If you look very closely at the routing table output, we can conclude that R1 has "auto- summary" enabled under the EIGRP routing process.
D 10.0.0.0/8 is a summary, 00:23:20, Null 0
Anytime the "auto-summary" is enabled under the routing process the router will install a summary route to "null 0" as long as the router has one or more subnets within the "classful" network. In the case above, you have two directly connected interfaces (Serial1 & Serial2) that are within the "classful" network. Therefore, regardless of whether you leran a route via EIGRP that is in the "classful" network, R1 will still install this summary route to "null 0".

by Nemanja at Feb. 14, 2020, 9:41 p.m.

Comments

Submit Cancel

Nemanja

5 years, 4 months ago

B. The summary route will remain in the table.

upvoted 2 times

...
