Exam 300-101 topic 2 question 591 discussion

Actual exam question from Cisco's 300-101
Question #: 591
Topic #: 2
[All 300-101 Questions]

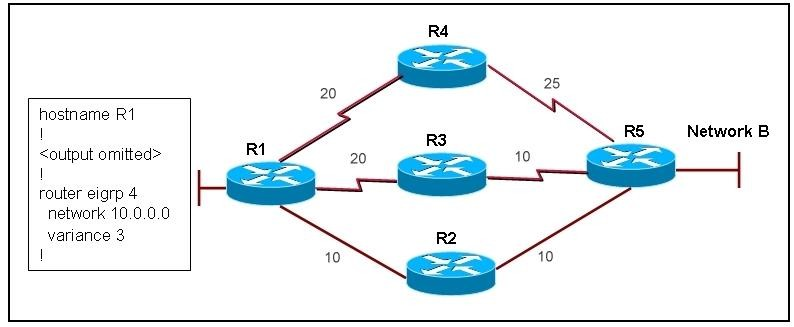

Refer to the exhibit.

On all routers in the network, EIGRP has been configured for load balancing across the three links. However, traffic destined for Network B from R1 is only load balanced over paths R1- R2-R5 and R1-R3-R5. What is the cause of the problem?

  • A. EIGRP will not select more than two links for unequal cost path load balancing.
  • B. Because the path has a different link type, EIGRP will not select path R1-R4-R5 for load balancing.
  • C. Because Router R4 is not a feasible successor, EIGRP will not select path R1-R4-R5 for load balancing.
Show Suggested Answer Hide Answer
Suggested Answer: D. EIGRP will not select path R1-R4-R5 for load balancing unless the value of the variance parameter is increased. 🗳️
Since R4 is not configured as a feasible successor, EIGRP will not select that path for load balancing. IN EIGRP, you need to configure feasible successor to enable load balancing on the path.
by Nemanja at Feb. 14, 2020, 9:43 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Nemanja
5 years, 4 months ago
C. Because Router R4 is not a feasible successor, EIGRP will not select path R1-R4-R5 for load balancing.
upvoted 2 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
