Exam 200-105 topic 1 question 84 discussion

Instructions -
- Enter Cisco IOS commands on device to verify network operation and answer for multiple-choice questions.
- THIS TASK DOES NOT REQUIRE DEVICE CONFIGURATION.
- Click the device icon to gain access to the console of the router. No console or enable passwords are required.
- To access the multiple-choice questions, click the numbered boxes on the left of the top panel.
- This task has four multiple-choice questions. Be sure to answer all four questions before clicking the Next button.

Scenario -
You are implementing PPP over serial links between R1 router and branch offices. In Phase 1 you must implement and verify PPP and GRE tunnel configurations as mentioned in the topology. In Phase 2 your colleague is expected to do NAT and ISP configurations between R1 and ISP router.
Identify the issues that you encounter during PPP over serial links implementation.

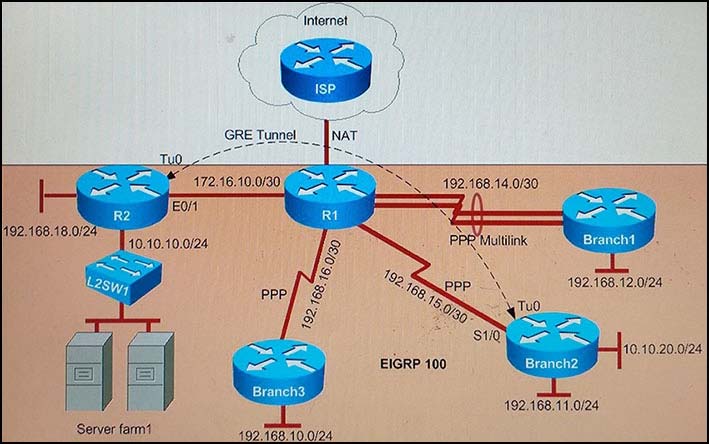

Routers Branch1, Branch2, and Branch3 connect to Router R1 in the main office over serial links.
PPP multilink implementation is recommended between R1 and Branch1 routers.
The GRE tunnel is configured between R2 and Branch2 routers, and traffic between Server farm1 10.10.10.0/24 network and Branch2 LAN 10.10.20.0/24 network, is routed over GRE tunnel using static route.
You have console access on R1, R2, Branch1, Branch2, and Branch3 devices. Use only show commands to troubleshoot the issues.

Why did Branch1 router lose WAN connectivity with R1 router?

Suggested Answer: A 🗳️

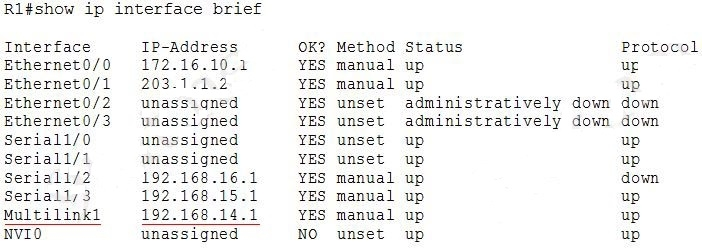

First we should check both routers with the "show ip interface brief" command. On R1:

On Branch1:

We can see that although the Multilink1 interfaces are in "up/up" state but they are not in the same subnet. According to the IP address scheme shown on the topology we can deduce the Multilink interface on Branch1 has been misconfigured, it should be 192.168.14.2 instead.
