Exam 300-510 topic 1 question 38 discussion

Actual exam question from Cisco's 300-510

Question #: 38
Topic #: 1

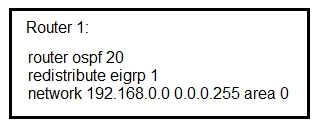

Refer to the exhibit. An engineer is troubleshooting an OSPF issue. Router 1 has a neighbor relationship with router 2. Only router 1 classful EIGRP routes can be seen on router 2. In order for all EIGRP routes to be redistributed correctly, which action should be taken?

A. Router 1 must have the keyword subnets included in the redistribution command for all EIGRP routes to be redistributed.
B. Router 1 must remove the AS number 1 from the redistribution command for all EIGRP routes to be redistributed.
C. Router 1 must have the keyword ospf-metric included in the redistribution command for all EIGRP routes to be redistributed.
D. Router 1 must have the keyword metric-type 1 included in the redistribution command for all EIGRP routes to be redistributed.

Show Suggested Answer

Suggested Answer: A 🗳️

by vddissa at Nov. 30, 2024, 6:05 a.m.

Comments

Submit Cancel

vddissa

6 months, 1 week ago

Selected Answer: A

As of this statement from https://www.ciscopress.com/articles/article.asp?p=27573 without subnets it will redistribute classful addresses "The default cost or metric of a redistributed route is 1 for BGP and 20 for all other protocols. This command will redistribute classful routes into OSPF only if the subnets keyword is not used. There are three general types of classful routes:" So in the question is asked for all subnets (eg:192.168.0.0/24) to be redistributed need to add subnets at the end

upvoted 1 times

...
