Exam 100-105 topic 1 question 297 discussion

You work for a company that provides managed network services, and of your real estate clients running a small office is experiencing network issues,
Troubleshoot the network issues.

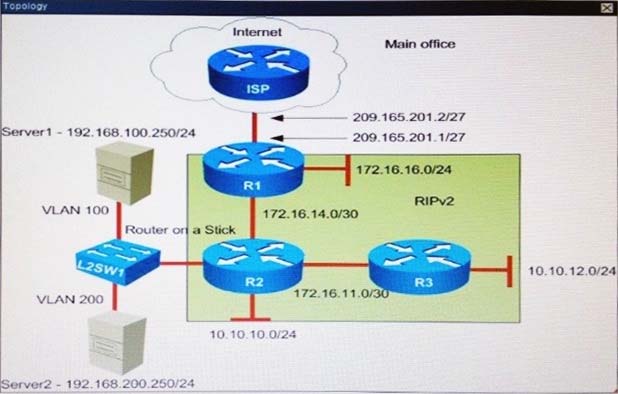

Router R1 connects the main office to internet, and routers R2 and R3 are internal routers NAT is enabled on Router R1.
The routing protocol that is enable between routers R1, R2, and R3 is RIPv2.
R1 sends default route into RIPv2 for internal routers to forward internet traffic to R1.

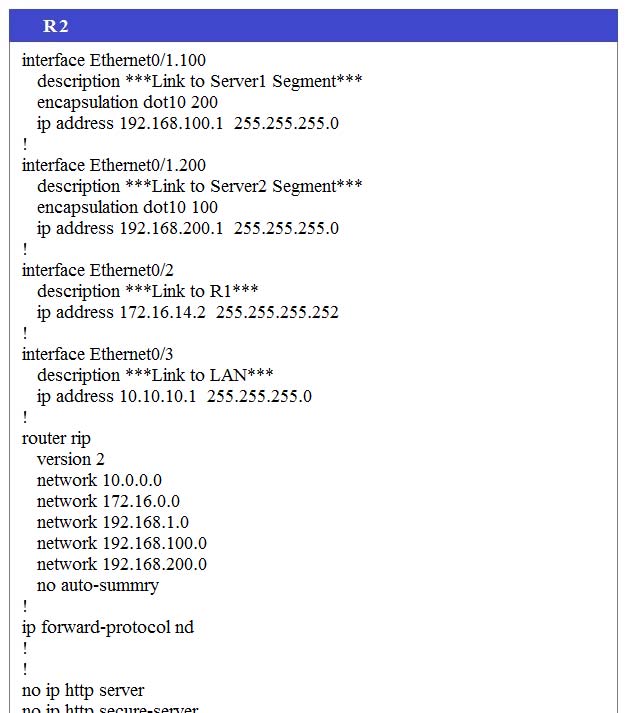

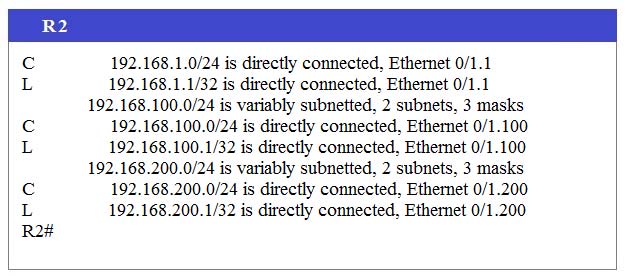

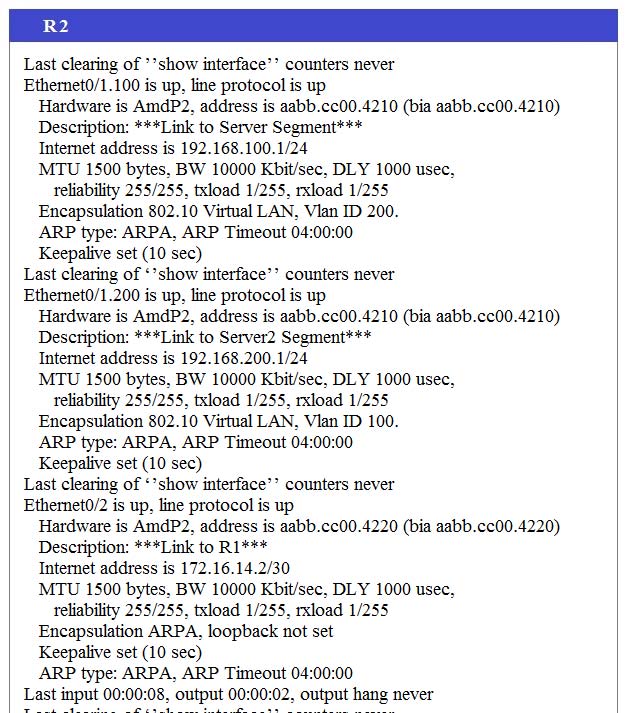

Server1 and Server2 are placed in VLAN 100 and 200 respectively, and dare still running router on stick configuration with router R2.

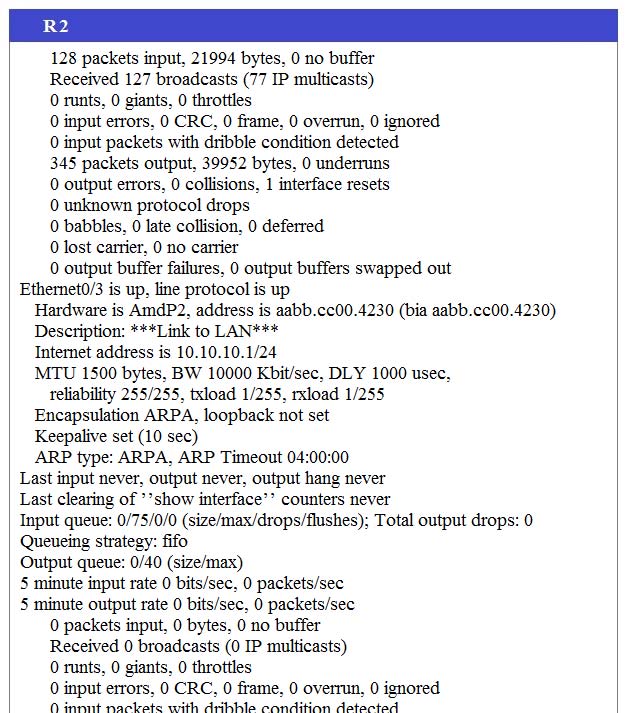

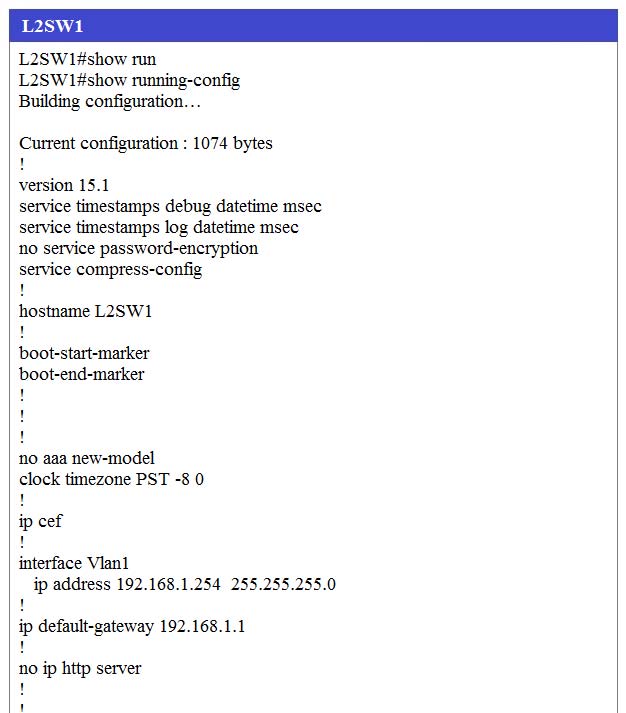

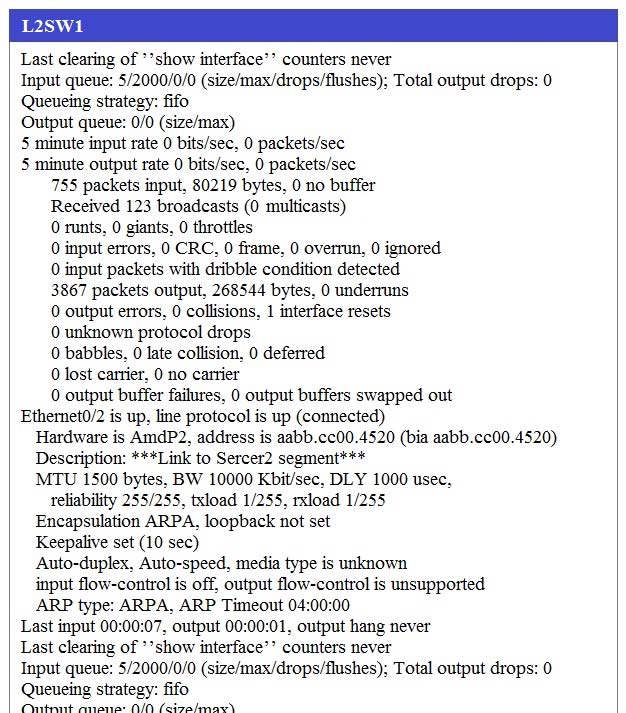

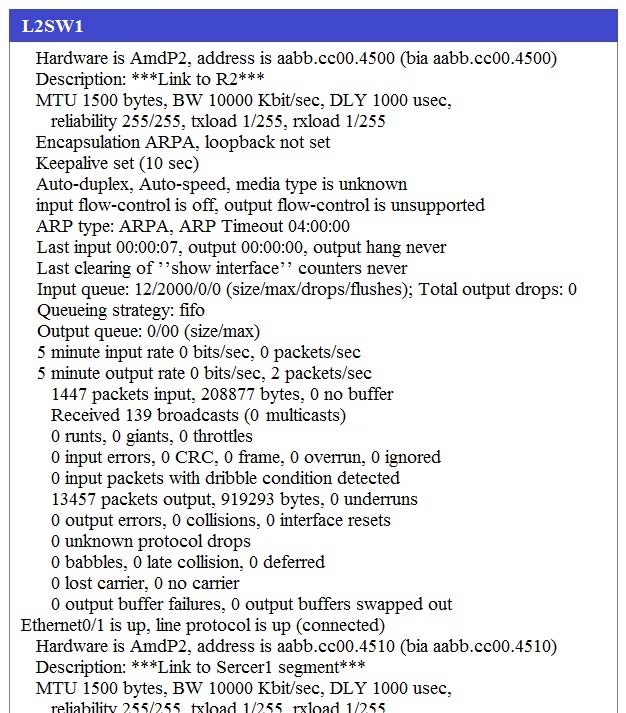

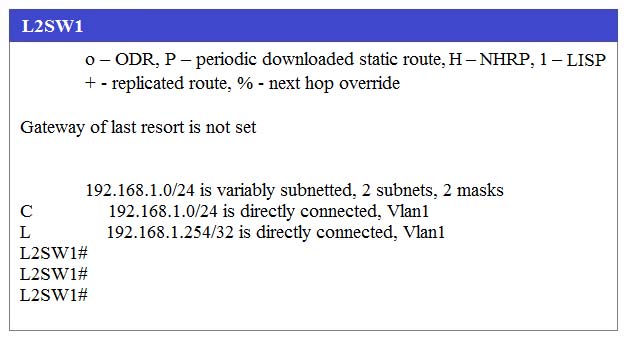

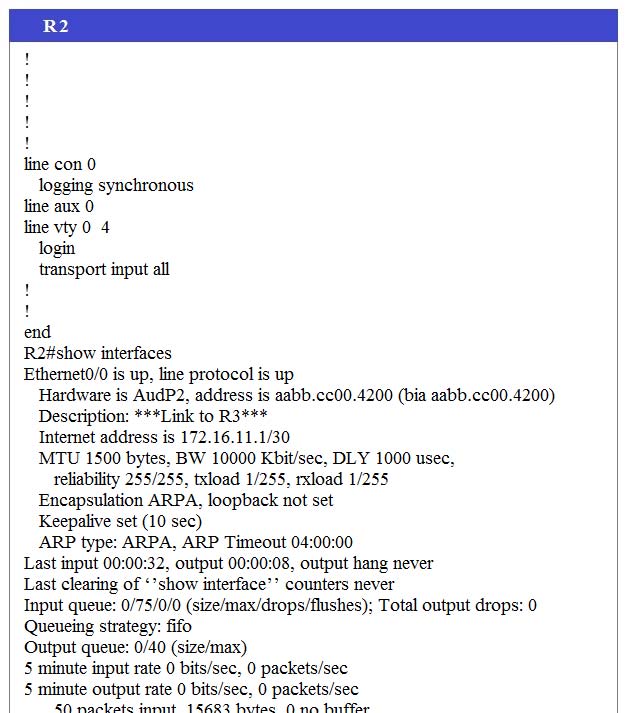

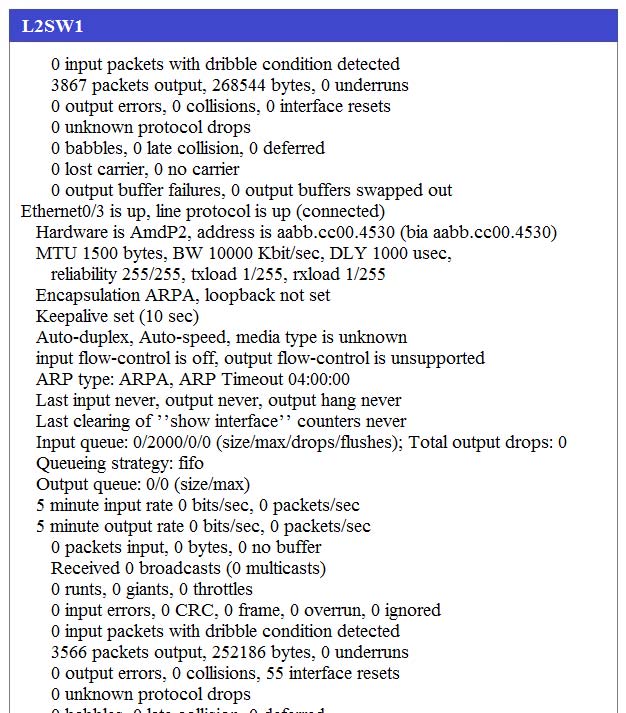

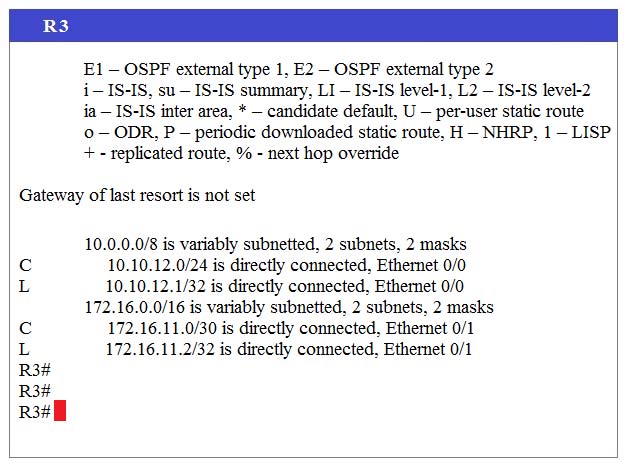

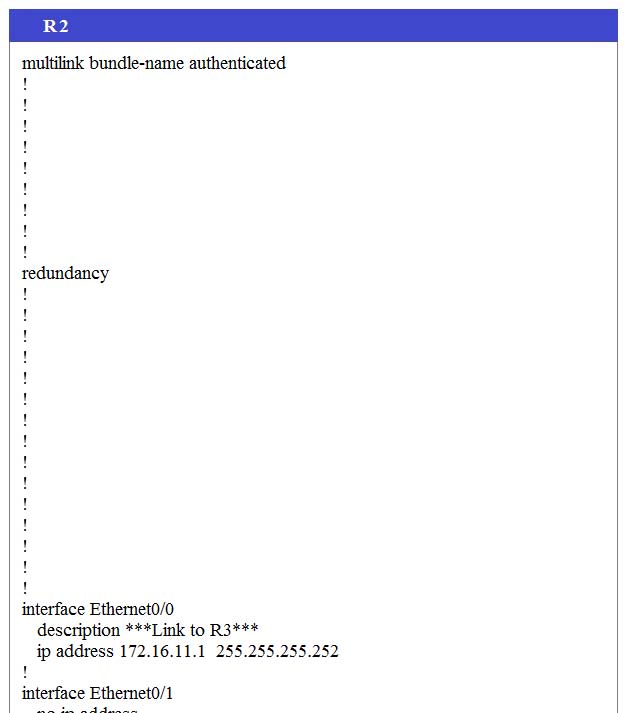

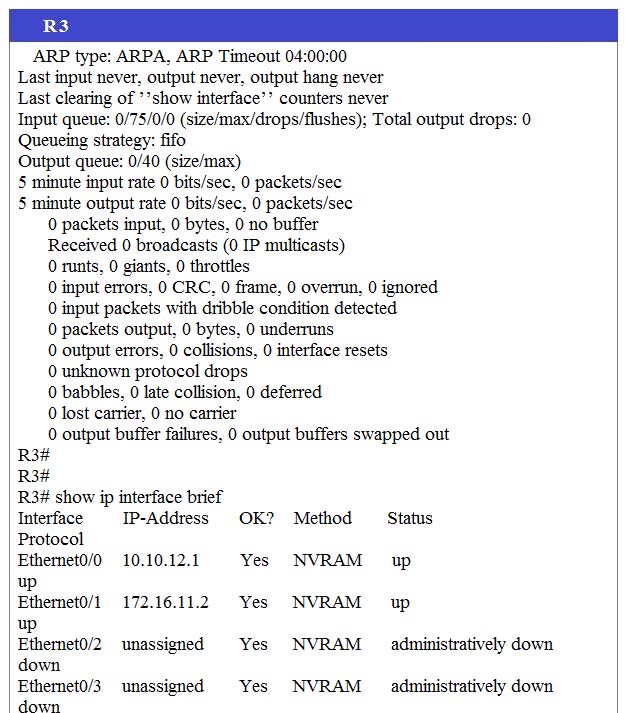

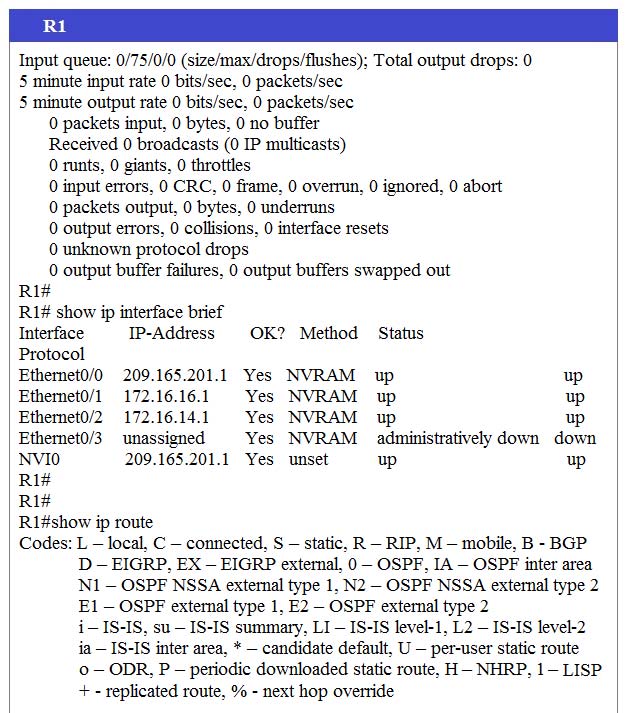

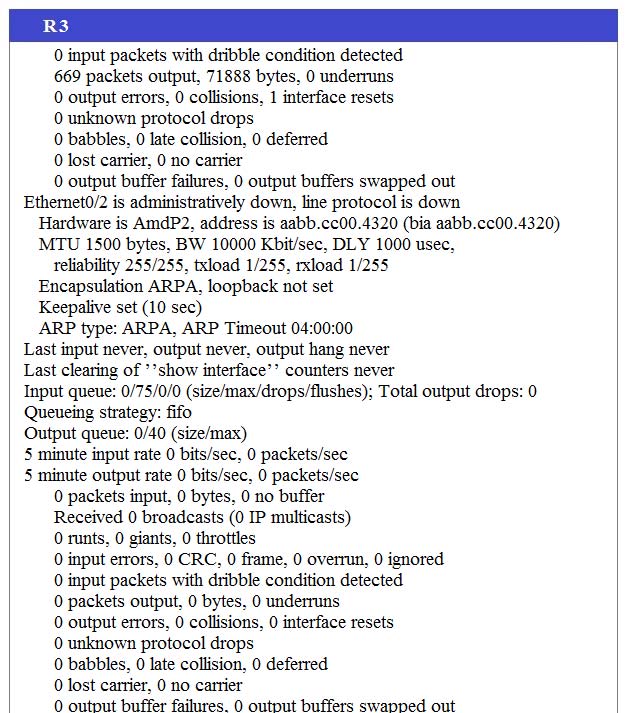

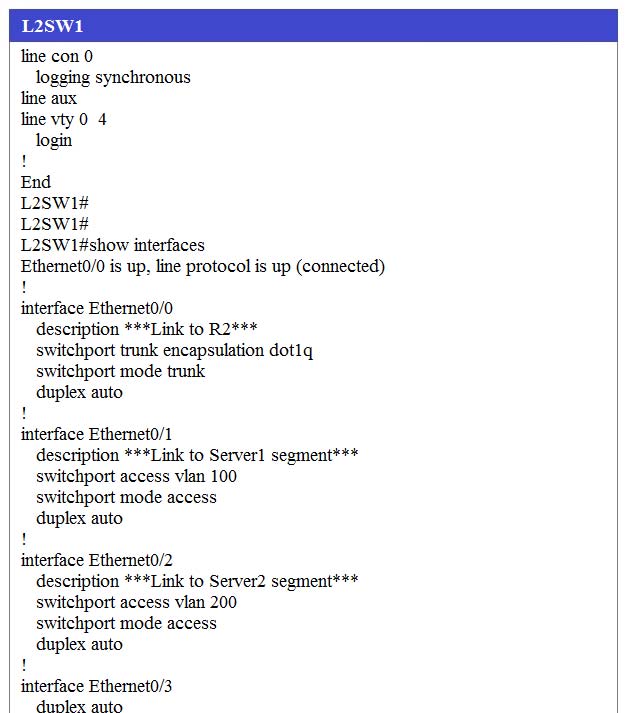

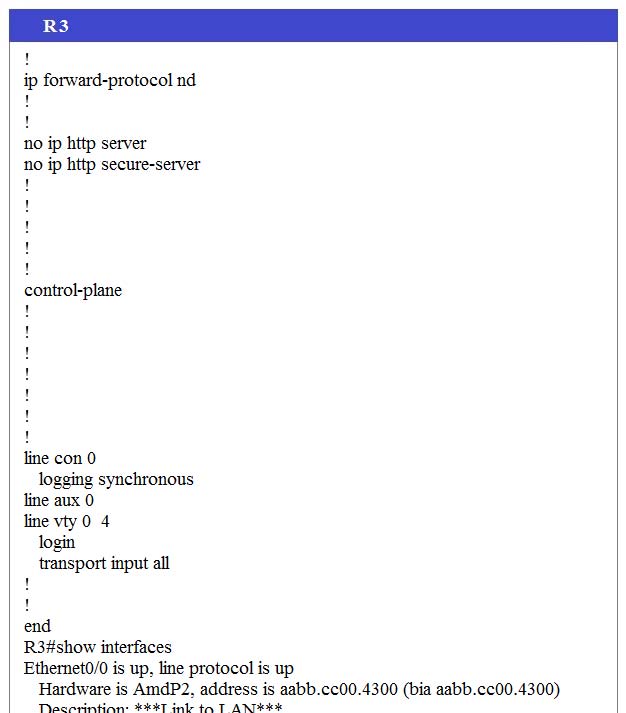

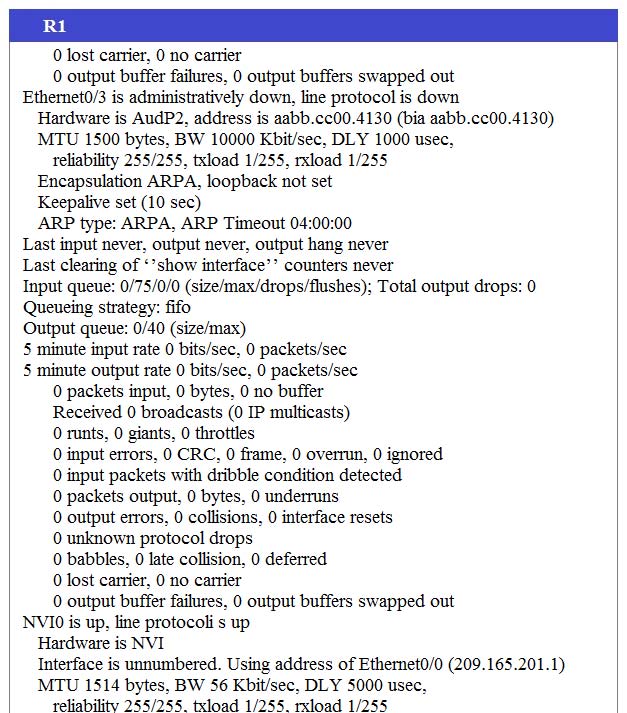

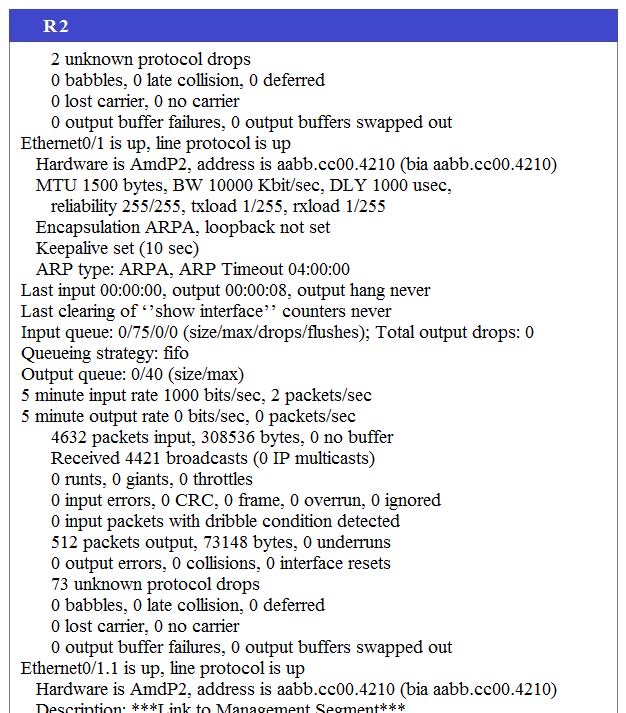

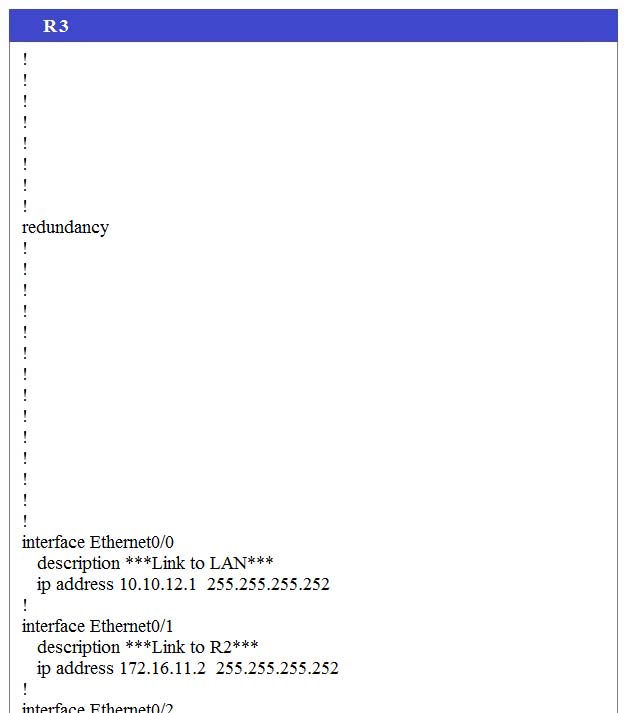

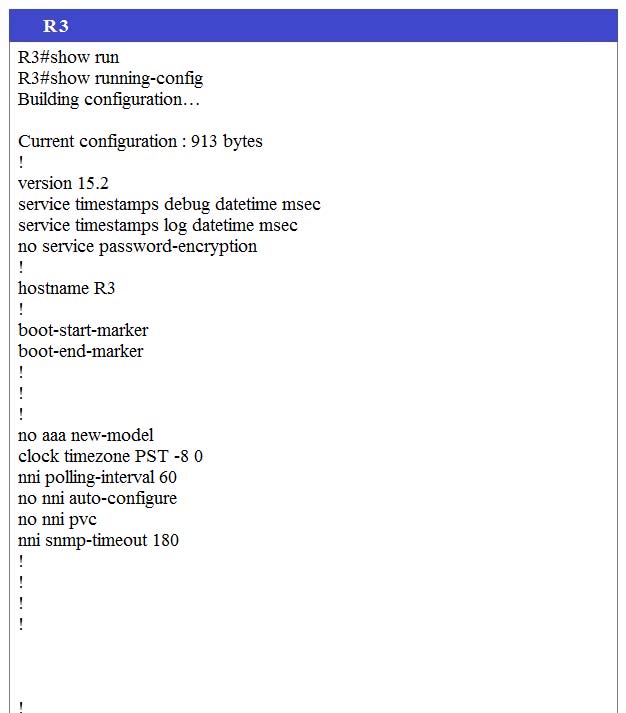

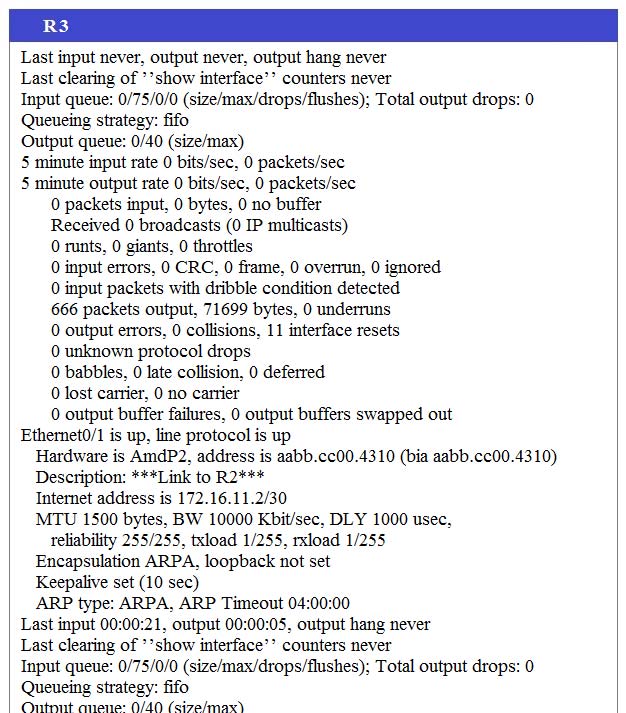

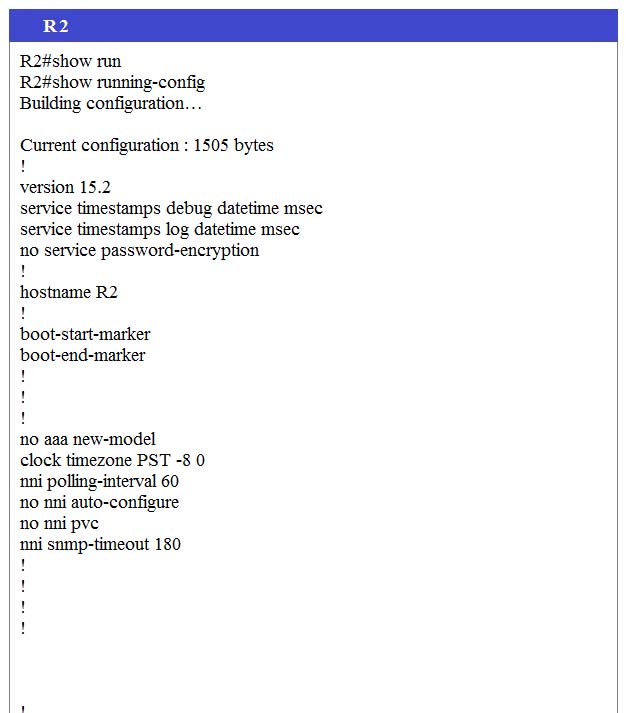

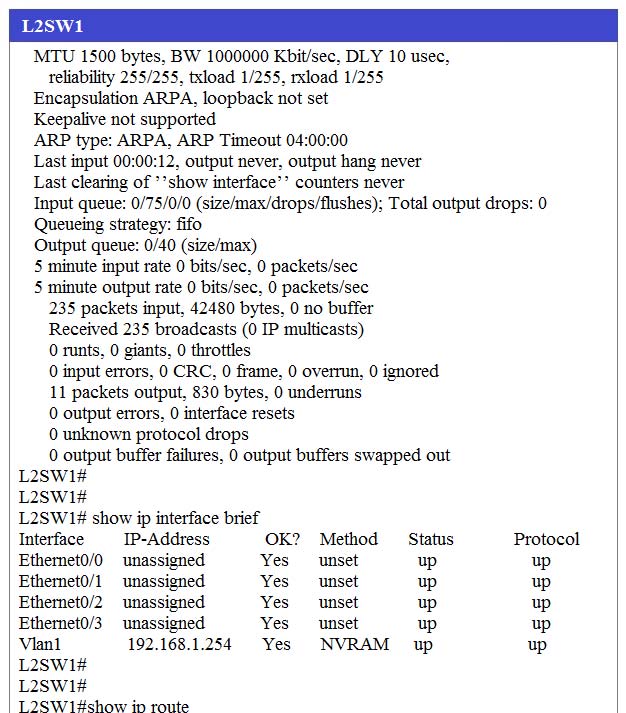

You have console access on R1, R2, R3, and L2SW1 devices.
Use only show commands to troubleshoot the issues.

Instructions -
✑ Enter IOS commands on the device to verify network operation and answer the multiple-choice questions.
✑ This task does not require device configuration.
✑ Click the device icon to gain access to the console of the device. No console or enable passwords are required.
✑ To access the multiple-choice questions, click the numbered boxes on the left of the top panel.
There are four multiple-choice questions with this task. Be sure to answer all four questions before clicking Next.

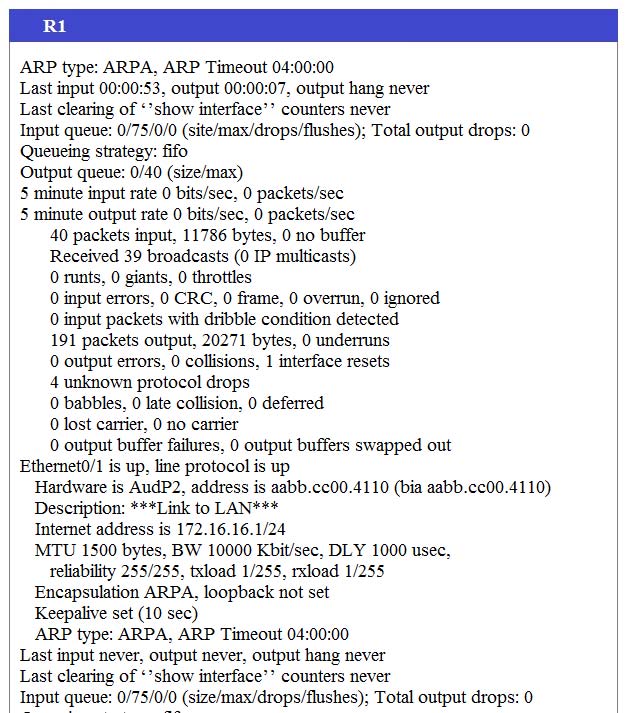

What is the correct statement below after examining the R1 routing table?

Suggested Answer: B 🗳️

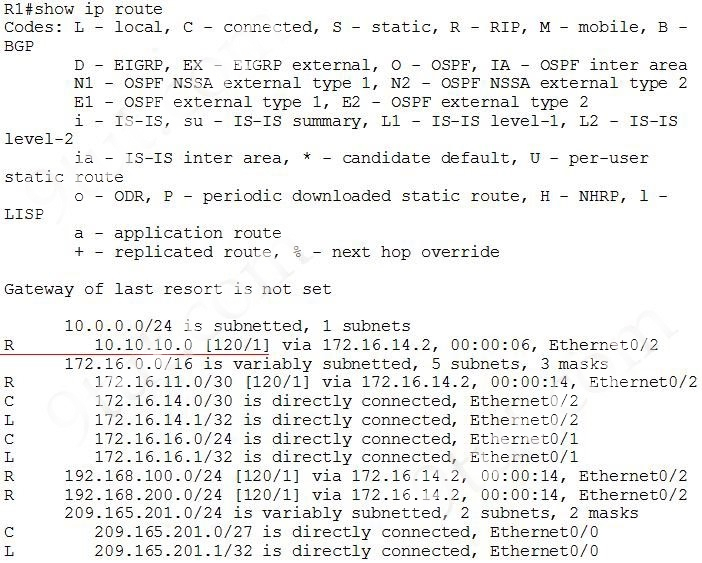

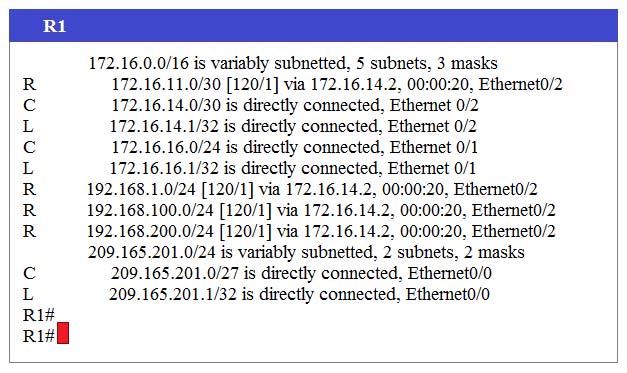

Surely we have to use the "show ip route" command to check the R1 routing table.

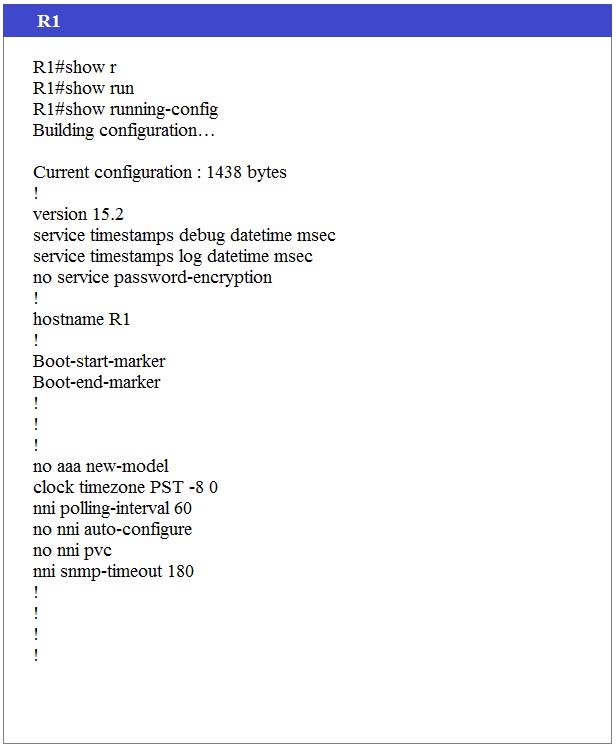

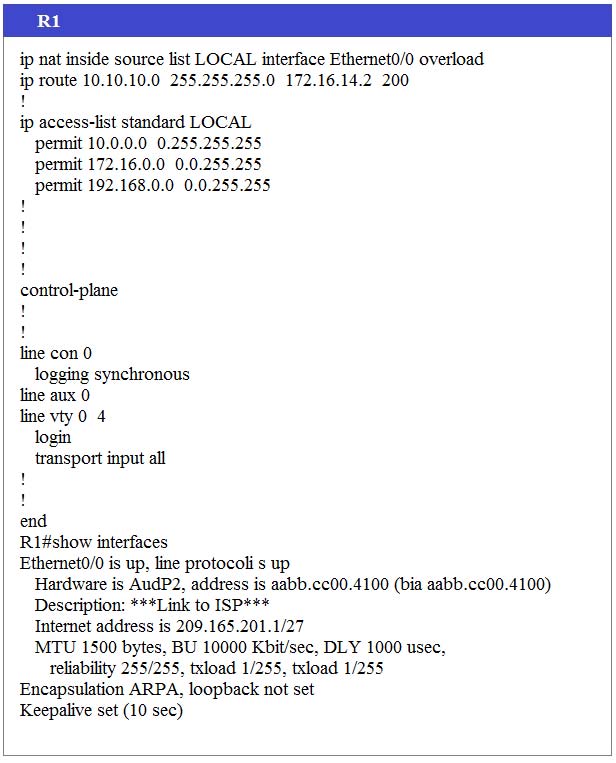

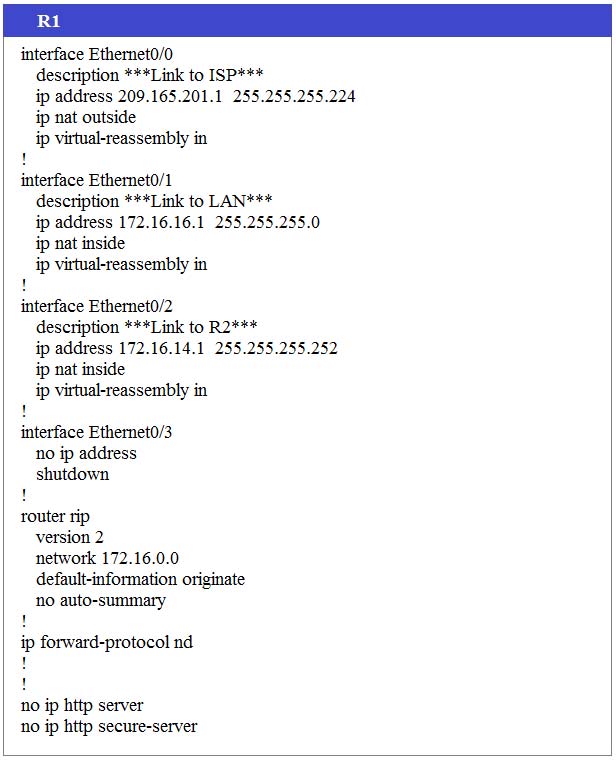

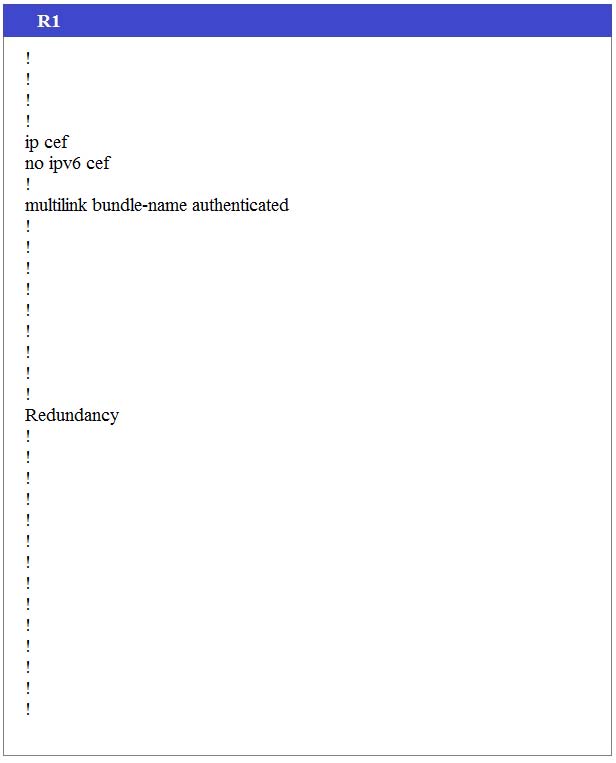

As we see here, 10.10.10/24 is learned from RIP. Notice that although there is a static route on R1 to this destination (you can check with the "show running- config" on R1 to see the line "ip route 10.10.10.0
255. 255.255.0 172.16.14.2 200"), this static route is not installed to the routing table because it is not the best path because the Administrative Distance (AD) of this static route is 200 while the AD of RIP is 120 -> R1 chose the path with lowest AD so it chose path advertised via RIP.
