Exam 200-105 topic 1 question 121 discussion

Actual exam question from Cisco's 200-105

Question #: 121
Topic #: 1

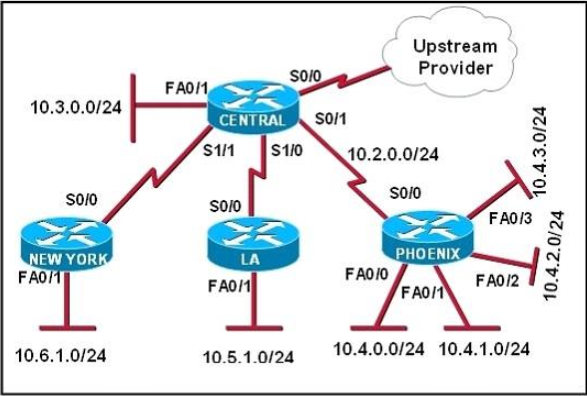

Refer to the exhibit. The ABC Company has the internetwork in the exhibit. The administrator would like to reduce the size of the routing table on the Central router. Which partial routing table entry in the Central router represents a route summary that represents the LANs in Phoenix but no additional subnets?

A. 10.0.0.0/22 is subnetted, 1 subnets D 10.0.0.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
B. 10.0.0.0/28 is subnetted, 1 subnets D 10.2.0.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
C. 10.0.0.0/30 is subnetted, 1 subnets D 10.2.2.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
D. 10.0.0.0/22 is subnetted, 1 subnets D 10.4.0.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
E. 10.0.0.0/28 is subnetted, 1 subnets D 10.4.4.0 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1
F. 10.0.0.0/30 is subnetted, 1 subnets D 10.4.4.4 [90/20514560] via 10.2.0.2, 6w0d, Serial0/1

Show Suggested Answer

Suggested Answer: D 🗳️
All the above networks can be summarized to 10.0.0.0 network but the Qrequires to "represent the LANs in Phoenix but no additional subnets" so we must summarize to 10.4.0.0 network. The Phoenix router has 4 subnets so we need to "move left" 2 bits of "/24-> /22 is the best choice -D is correct.

by [deleted] at April 2, 2025, 4:32 p.m.

Comments

Submit Cancel

Currently there are no comments in this discussion, be the first to comment!
