Exam 200-105 topic 1 question 327 discussion

Actual exam question from Cisco's 200-105
Question #: 327
Topic #: 1
[All 200-105 Questions]

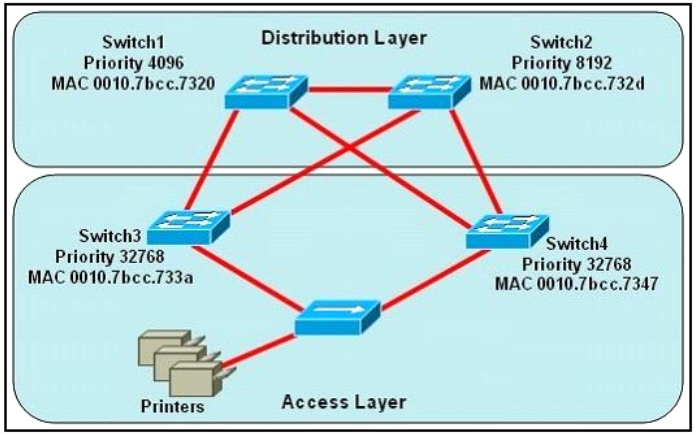

Refer to the exhibit. Which switch provides the spanning-tree designated port role for the network segment that services the printers?

  • A. Switch1
  • B. Switch2
  • C. Switch3
  • D. Switch4
Show Suggested Answer Hide Answer
Suggested Answer: C 🗳️
First, the question asks what switch services the printers, so it can be Switch 3 or Switch 4 which is connected directly to the Printers.
Designated port is a port that is in the forwarding state. All ports of the root bridge are designated ports.
Switch 3 and Switch 4 has same priority so it will see on lowest MAC address and here switch 3 has lowest MAC address. So switch 3 segment will play a
Designated port role. By comparing the MAC address of Switch 3 and Switch 4 we found that the MAC of Switch 3 is smaller. Therefore, the interface connected to the Printers of Switch 3 will become designated interface and the interface of Switch 4 will be blocked.
by [deleted] at April 2, 2025, 5:09 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Currently there are no comments in this discussion, be the first to comment!
Community vote distribution
A (35%)
C (25%)
B (20%)
