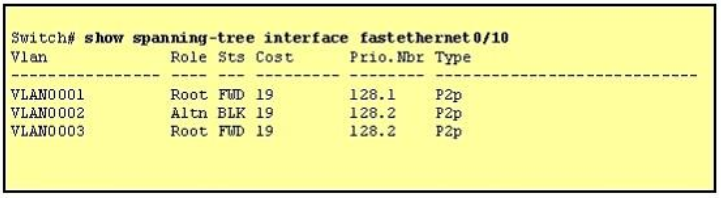

Refer to the exhibit. Given the output shown from this Cisco Catalyst 2950, what is the reasons that interface FastEthernet 0/10 is not the root port for VLAN 2?
A.
This switch has more than one interface connected to the root network segment in VLAN 2.
B.
This switch is running RSTP while the elected designated switch is running 802.1d Spanning Tree.
C.
This switch interface has a higher path cost to the root bridge than another in the topology.
D.
This switch has a lower bridge ID for VLAN 2 than the elected designated switch.
Suggested Answer:C🗳️
These four parameters are examined in order to make root bridge, root port, designated port. Other switch has lowest Sending Bridge ID or Sending Port ID so vlan 2 is not the root port. 1. A lower Root Bridge ID 2. A lower path cost to the Root 3. A lower Sending Bridge ID 4. A lower Sending Port ID
