Exam 200-105 topic 1 question 349 discussion

Actual exam question from Cisco's 200-105
Question #: 349
Topic #: 1
[All 200-105 Questions]

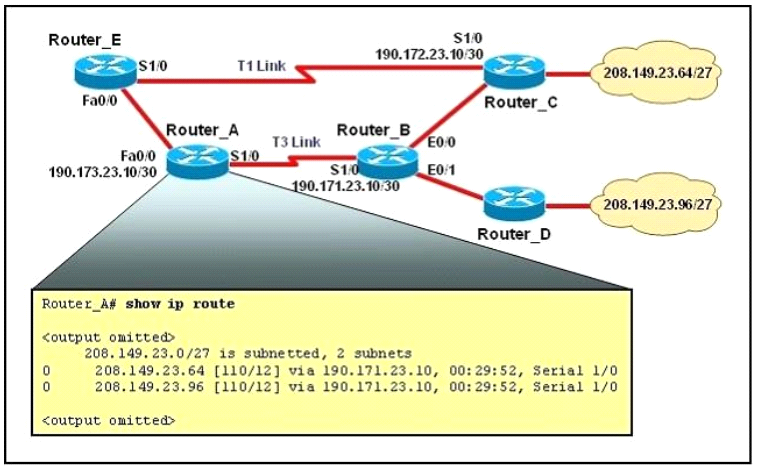

Refer to the exhibit. The network is converged. After link-state advertisements are received from Router_A, what information will Router_E contain in its routing table for the subnets 208.149.23.64 and 208.149.23.96?

  • A. O 208.149.23.64 [110/13] via 190.173.23.10, 00:00:07, FastEthernet 0/0 O 208.149.23.96 [110/13] via 190.173.23.10, 00:00:16, FastEthernet 0/0
  • B. O 208.149.23.64 [110/1] via 190.172.23.10, 00:00:07, Serial 1/0 O 208.149.23.96 [110/3] via 190.173.23.10, 00:00:16, FastEthernet 0/0
  • C. O 208.149.23.64 [110/13] via 190.172.23.10, 00:00:07, Serial 1/0 O 208.149.23.96 [110/13] via 190.172.23.10, 00:00:16, Serial 1/0 O 208.149.23.96 [110/13] via 190.173.23.10, 00:00:16, FastEthernet 0/0
  • D. O 208.149.23.64 [110/3] via 190.172.23.10, 00:00:07, Serial 1/0 O 208.149.23.96 [110/3] via 190.172.23.10, 00:00:16, Serial 1/0
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️
Router_E learns two subnets subnets 208.149.23.64 and 208.149.23.96 via Router_A through FastEthernet interface. The interface cost is calculated with the formula 108 / Bandwidth. For FastEthernet it is 108 / 100 Mbps = 108 / 100,000,000 = 1. Therefore, the cost is 12 (learned from Router_A) + 1 = 13 for both subnets -B is not correct. The cost through T1 link is much higher than through T3 link (T1 cost = 108 / 1.544 Mbps = 64; T3 cost = 108 / 45 Mbps = 2) so surely
OSPF will choose the path through T3 link -> Router_E will choose the path from Router_A through FastEthernet0/0, not Serial1/0 -C & D are not correct.
In fact, we can quickly eliminate answers B, C and D because they contain at least one subnet learned from Serial1/0 -they are surely incorrect.
