Exam 300-075 topic 1 question 315 discussion

Actual exam question from Cisco's 300-075

Question #: 315
Topic #: 1

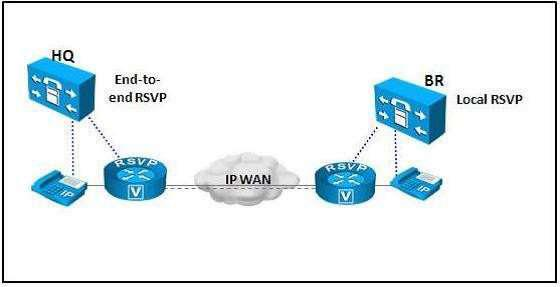

Refer to the exhibit.

The HQ Cisco Unified Communications Manager has been configured for end-to-end RSVP.
The BR Cisco Unified Communications Manager has been configured for local RSVP. RSVP between the locations assigned to the IP phones and SIP trunks at each site are configured with mandatory RSVP. When a call is placed from the IP phone at HQ to the BR phone at the BR site, which statement is true?

A. The Cisco Unified Communications Manager at HQ will fall back to local RSVP and place the call. No RSVP end-to-end will occur.
B. RSVP end-to-end will occur.
C. The Cisco Unified Communications Manager at HQ will use end-to-end RSVP. The BR Cisco Unified Communications Manager will use local RSVP.
D. The call will fail.
E. The call will proceed as a normal call with no RSVP reservation.

Show Suggested Answer

Suggested Answer: D 🗳️
A possible cause is that the same router is being used as the calling and called RSVP agents, and that router is not running the latest IOS version, which supports loopback on RSVP reservation. Make sure that the router is running the latest IOS version.

by [deleted] at April 3, 2025, 3:58 p.m.
