Actual exam question from Cisco's 400-101
Question #: 482
Topic #: 1
[All 400-101 Questions]

Refer to the exhibit.
"Pass Any Exam. Any Time." - www.actualtests.com 459
If the remaining configuration uses default values, what is the expected output of the show mls qos queue-set command?

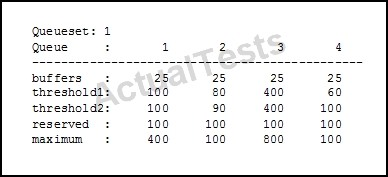

A.

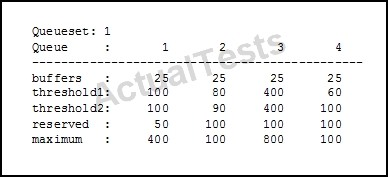

B.

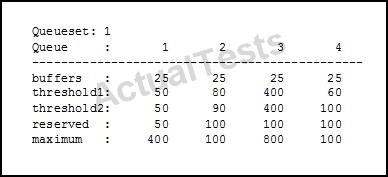

C.
"Pass Any Exam. Any Time." - www.actualtests.com 460

D.

  • A. Exhibit A
  • B. Exhibit B
  • C. Exhibit C
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️
mls qos queue-set output qset-idthreshold queue-id drop-threshold1 drop-threshold2 reserved- threshold maximum-threshold
Configure the WTD thresholds, guarantee the availability of buffers, and configure the maximum memory allocation for the queue-set (four egress queues per port).
By default, the WTD thresholds for queues 1, 3, and 4 are set to 100 percent. The thresholds for queue 2 are set to 200 percent. The reserved thresholds for queues 1, 2, 3, and 4 are set to 50 percent. The maximum thresholds for all queues are set to 400 percent.
Reference:
http://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3750x_3560x/software/release/12- 2_55_se/configuration/guide/3750xscg/swqos.html
