Exam 400-201 topic 1 question 33 discussion

Actual exam question from Cisco's 400-201
Question #: 33
Topic #: 1
[All 400-201 Questions]

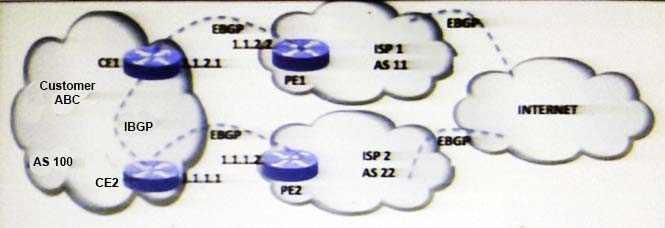

Refer to the exhibit. Customer ABC is peering with two service providers for Internet access. In order to prevent the AS 100 from becoming a transit AS between
ISP_1 and ISP_2, which BGP configuration must be applied to achieve this goal?

  • A. CE1#CE2#ip as-path access-list 1 permit ^11$ip as-path access-list 1 permit ^$route-map LOCAL_ONLY permit 10route-map LOCAL_ONLY permit 10match as-path 1match as-path1router BGP 100router BGP 100neighbor 1.1.2.2 route-map LOCAL_ONLY outneighbor 1.1.1.2 route-map LOCAL_ONLY out
  • B. CE1#CE2#ip as-path access-list 1 permit ^$ip as-path access-list 1 permit ^$route-map LOCAL_ONLY permit 10route-map LOCAL_ONLY permit 10match as- path 1match as-path 1router BGP 100router BGP 100neighbor 1.1.2.2 route-map LOCAL_ONLY outneighbor 1.1.1.2 route-map LOCAL_ONLY out
  • C. CE1#CE2#ip as-path access-list1 permit ^100$ip as-path access-list 1 permit ^100$route-map LOCAL_ONLY permit 10route-map LOCAL_ONLY permit 10match as-path 1match as-path 1router BGP 100router BGP 100neighbor 1.1.2.2 route-map LOCAL_ONLY inneighbor1.1.1.2 route-map LOCAL_ONLY in
  • D. CE1#CE2#ip as-path access-list 1 permit ^$ip as-path access-list 1 permit ^$route-map LOCAL_ONLY permit 10route-map LOCAL_ONLY permit 10match as- path 1match as-path 1router BGP 100router BGP 100neighbor 1.1.2.2 route-map LOCAL_ONLY inneighbor 1.1.1.2 route-map LOCAL_ONLY in
  • E. CE1#CE2#ip as-path access-list 1 permit ^100$ip as-path access-list 1 permit ^100$route-map LOCAL_ONLY permit 10route-mapLOCAL_ONLY permit 10match as-path 1match as-path 1router BGP 100router BGP 100neighbor 1.1.2.2 route-map LOCAL_ONLY outneighbor 1.1.1.2 route-map LOCAL_ONLY out
Show Suggested Answer Hide Answer
Suggested Answer: B 🗳️
by [deleted] at April 3, 2025, 11:10 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Currently there are no comments in this discussion, be the first to comment!
Community vote distribution
A (35%)
C (25%)
B (20%)
