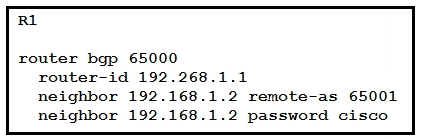

Refer to the exhibit Router R1 and its peer R2 reside on the same subnet in the network. If an engineer implements this configuration to R1, how does it make connections to R2?
A.
R1 establishes TCP connections that are authenticated with a clear-text password.
B.
R1 establishes UDP connections that are authenticated with an MD5 password.
C.
R1 establishes UDP connections that are authenticated with a clear-text password.
D.
R1 establishes TCP connections that are authenticated with an MD5 password.
To enable message digest5 (MD5) authentication on a TCP connection between two BGP peers, use the neighbor password command in router configuration mode. To disable this function, use the no form of this command.
neighbor {ip-address | peer-group-name} password string
no neighbor {ip-address | peer-group-name} password
I agree, MD5 authentication is activated with the "password" command.
https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/112188-configure-md5-bgp-00.html
It should be TCP connection with clear text password for IOS devices.
upvoted 1 times
...
