Exam 200-355 topic 1 question 463 discussion

Actual exam question from Cisco's 200-355

Question #: 463
Topic #: 1

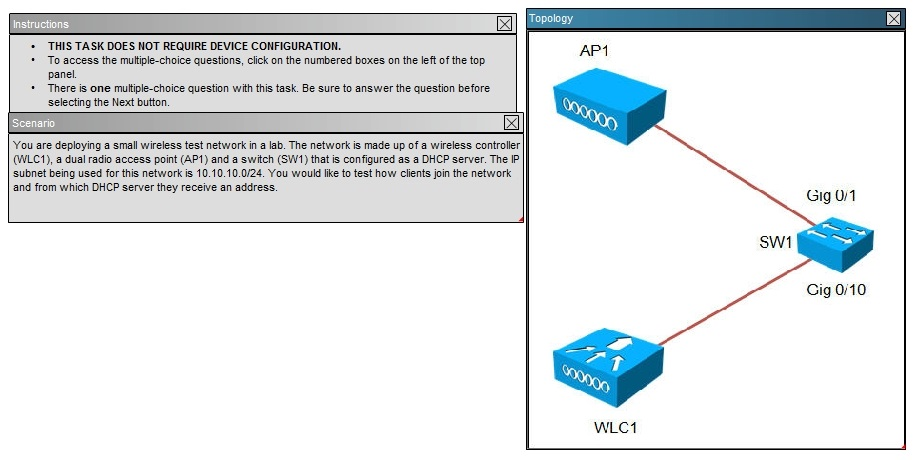

All equipment is operational. Through which two methods can a wireless client receive an IP address when associating to the WLAN? (Choose two.)

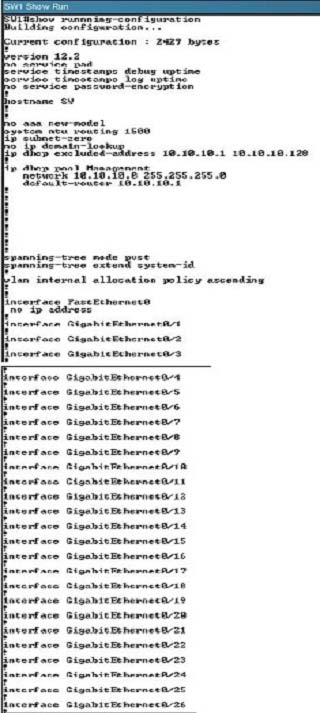

A. The clients can receive an IP address from SW1.
B. The clients can receive an IP address from WLC1.
C. The clients will not receive an IP address from either DHCP server because of overlapping address ranges.
D. The clients can receive an IP address in a round-robin manner from either SW1 or WLC1.
E. The clients can use a static IP address.

Show Suggested Answer

Suggested Answer: BE 🗳️

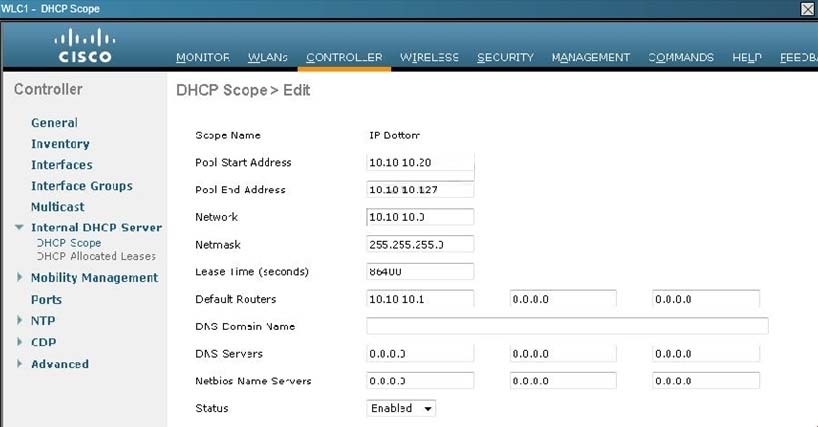

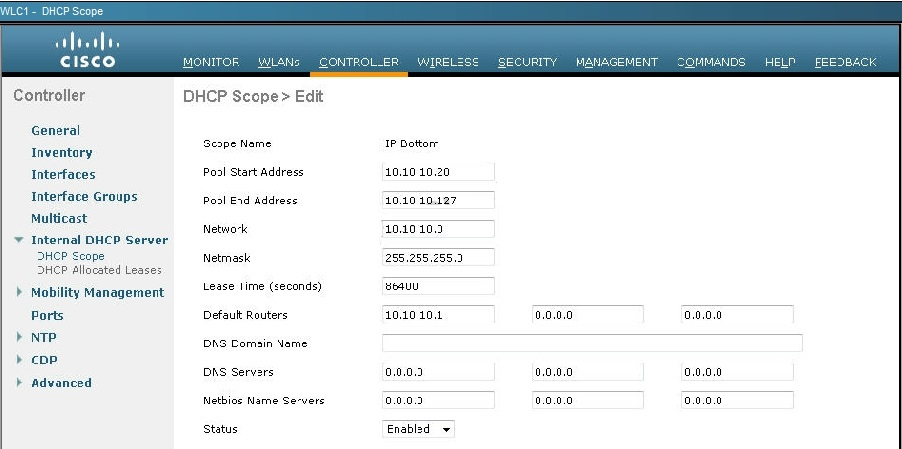

As shown below, the DHCP server functionality has been enabled on the WLC1. Aside from DHCP, all clients can always statically assign themselves an IP address.

by xtrattitude4u at Aug. 7, 2019, 4:20 p.m.

Comments

Submit Cancel

JEVC

5 years, 5 months ago

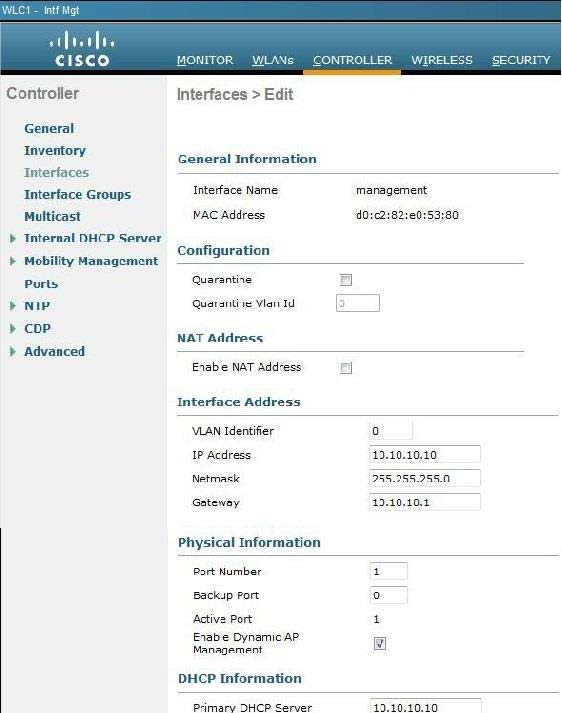

The correct answers are BE. B: In the configuration of Dynamic Interface we can see that the Primary DHCP Server is set with the IP 10.10.10.10 (Itself) E: The static assignment is ever available.

upvoted 2 times

...

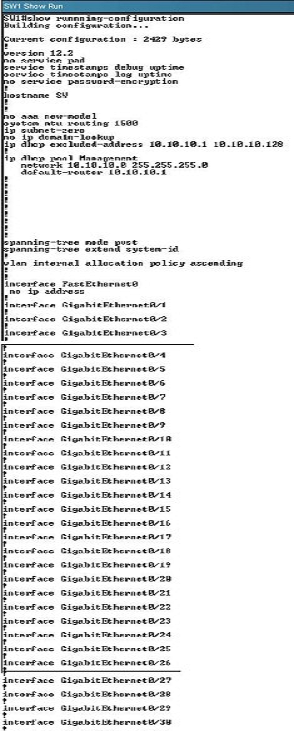

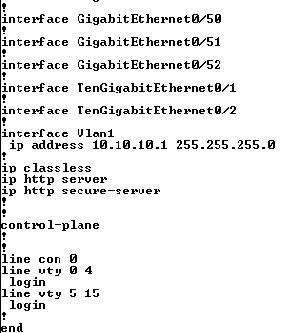

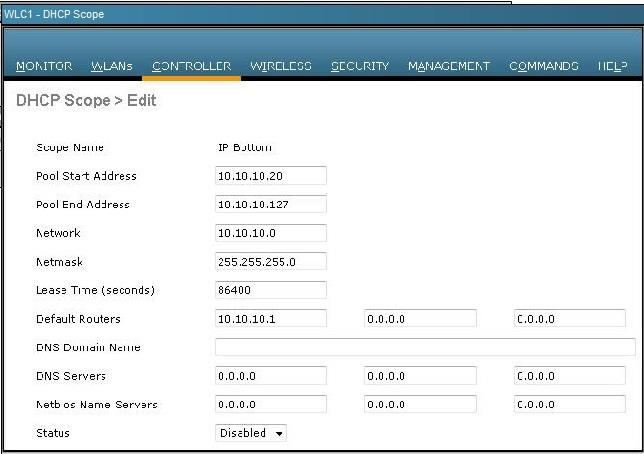

The screenshots do not match the correct answer here. In WLC > DHCP scope screenshot, you can see the DHCP server is disabled on WLC1. So going by the Diagram, clients would only receive a DHCP IP address from the switch, thus Making choices A and E correct. I think the screenshot was swapped with the next question, which has the same mismatched screenshot. Just remember the client will attempt to contact the WLC as the DHCP server if it is enabled.

upvoted 1 times

...
