Actual exam question from Cisco's 200-355

Question #: 464
Topic #: 1

In setting up the wireless network, it is desired that the DHCP server that is configured in WLC1 provides IP addressing to the WLAN. When devices attempt to join the network, they fail to receive an IP address in the range provided by the DHCP server in WLC1, but they do receive an IP address from the DHCP server in
SW1. What is causing this issue?

A. The external DHCP server in SW1 will always be the preferred DHCP server and WLC1 will always be the secondary DHCP server in the WLAN.
B. The DHCP server address for SW1 needs to be removed from the DHCP server configuration in WLC1.
C. The primary DHCP server address in WLC1 is incorrect.
D. The primary DHCP server configured in WLC1 is not enabled.

Show Suggested Answer

Suggested Answer: D 🗳️

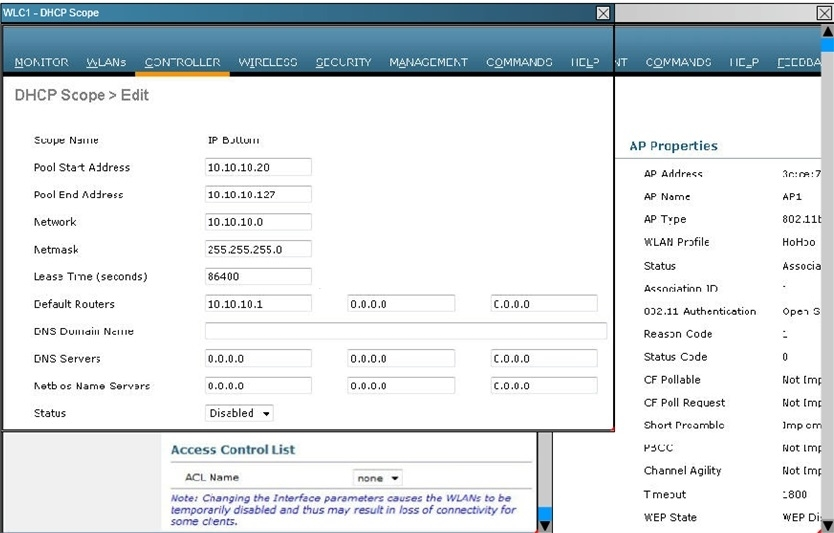

This can be verified by the following screen shot, showing the DHCP server is disabled at the bottom:

by xtrattitude4u at Aug. 7, 2019, 4:23 p.m.

Comments

Submit Cancel

xtrattitude4u

5 years, 10 months ago

The DHCP config screenshot from the answer is missing from the question. Answer is correct if DHCP is disabled on WLC1. I believe the needed screenshot was mistakenly put in the question before this one.

upvoted 1 times

...
