Exam 350-701 topic 1 question 195 discussion

Actual exam question from Cisco's 350-701
Question #: 195
Topic #: 1
[All 350-701 Questions]

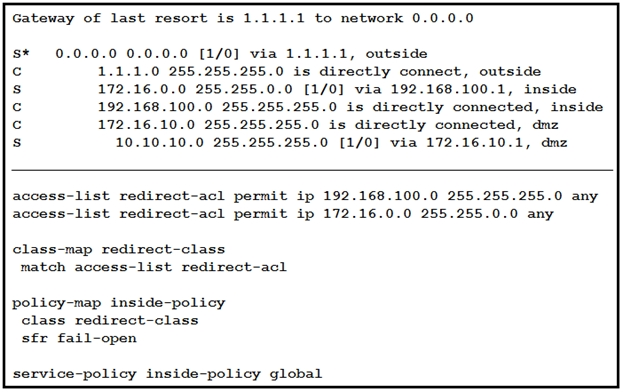

Refer to the exhibit. What is a result of the configuration?

  • A. Traffic from the DMZ network is redirected.
  • B. Traffic from the inside network is redirected.
  • C. All TCP traffic is redirected.
  • D. Traffic from the inside and DMZ networks is redirected.
Show Suggested Answer Hide Answer
Suggested Answer: D 🗳️
by AZak at Oct. 5, 2020, 12:28 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
LynenDutzow
Highly Voted 4 years, 5 months ago
The answer is definitly D. The ACL's match 192.168.100.0 to 192.168.100.255 and 172.16.0.0 to 172.16.255.255. The DMZ and inside network fall in those ranges.
upvoted 14 times
...
getafix
Highly Voted 2 years, 11 months ago
Selected Answer: D
Traffic from both inside and DMZ networks is redirected. Inside networks are 192.168.100.0/24 and 172.16.0.0/16 DMZ network is 172.16.10.0/24 The redirect acl is permitting 192.168.100.0/24 and 172.16.0.0/16 (which also includes 172.16.10.0/24 --> traffic from DMZ networks)
upvoted 7 times
...
Alizade
Most Recent 1 year, 7 months ago
Selected Answer: D
Answer: D
upvoted 1 times
...
TWu2
3 years, 3 months ago
10.10.10.0/24 (to DMZ) is not in the access-list. So the answer is B only.
upvoted 3 times
Demon_Queen_Velverosa
7 months, 2 weeks ago
I know this is late, but dont let this fool you as the /24 is apart of the /16 172.16.10.0/24 is apart of 172.16.0.0/16
upvoted 1 times
...
...
MoII
3 years, 5 months ago
Yes, should be D
upvoted 2 times
...
statikd
3 years, 10 months ago
Answer is D 192.168.100.0 255.255.255.0 is directly connected, inside 172.16.10.0 255.255.255.0 is directly connected, dmz Both ACLs apply to these networks.
upvoted 3 times
...
oncledave
4 years, 3 months ago
What about the last static route 10.10.10.0/24 , part of the dmz ? The inside network, as well as part of the dmz fall in those ranges.
upvoted 1 times
netwguy
3 years, 11 months ago
D is correct. Answer D does not state that all networks from inside and DMZ are redirected, just the (some) traffic is redirected.
upvoted 4 times
dr4gn00t
3 years, 3 months ago
correct answer would be: traffic from inside networks and traffic from DMZ DIRECTLY CONNECTED network are redirected. Teribly question as both B and D are can be considered correct answers.
upvoted 2 times
...
...
...
Oz3006
4 years, 6 months ago
forget what is said, answer is D
upvoted 6 times
...
Oz3006
4 years, 6 months ago
answer is B If you look at the 172.16.10.0/24 for DMZ does not match the access list 172.16.0.0/16
upvoted 2 times
mecacig953
3 years, 1 month ago
yes to this
upvoted 2 times
...
Initial14
2 years, 6 months ago
172.16.10.0 matches 172.16.0.0/16... 172.16.0.0 255.255.0.0 has rage of 172.16.0.0 - 172.16.255.255
upvoted 1 times
...
...
Jimmyluckyone
4 years, 7 months ago
The access-list also matches the DMZ network 172.16.10.0 so D is correct
upvoted 4 times
...
AZak
4 years, 7 months ago
Is it D ? Im not 100% sure. Couldn't it maybe B ?
upvoted 1 times
...
