Exam 200-301 topic 1 question 530 discussion

Actual exam question from Cisco's 200-301
Question #: 530
Topic #: 1
[All 200-301 Questions]

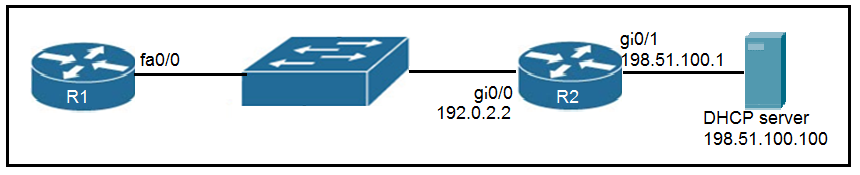

Refer to the exhibit. An engineer deploys a topology in which R1 obtains its IP configuration from DHCP. If the switch and DHCP server configurations are complete and correct, which two sets of commands must be configured on R1 and R2 to complete the task? (Choose two.)

  • A. R1(config)# interface fa0/0 R1(config-if)# ip helper-address 198.51.100.100
  • B. R2(config)# interface gi0/0 R2(config-if)# ip helper-address 198.51.100.100
  • C. R1(config)# interface fa0/0 R1(config-if)# ip address dhcp R1(config-if)# no shutdown
  • D. R2(config)# interface gi0/0 R2(config-if)# ip address dhcp
  • E. R1(config)# interface fa0/0 R1(config-if)# ip helper-address 192.0.2.2
Show Suggested Answer Hide Answer
Suggested Answer: BC 🗳️
by Ali526 at Jan. 4, 2021, 10:28 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
ZayaB
Highly Voted 3 years, 8 months ago
Note that DHCP server is behind R2 and R1 needs IP via DHCP. Therefore, R2 needs to be a relay agent. On R1 interface, ip address dhcp and R2 inside interface, ip helper-address 192.168.100.100 (dhcp server). Answers are B and C.
upvoted 31 times
...
BettoAtzeni
Highly Voted 1 year, 3 months ago
BC are correct With these configurations in place: 1. R1, connected to the switch, will send out a DHCP request on its Fa0/0 interface. 2. R2's Gi0/0 interface, acting as a DHCP relay-agent, will receive the DHCP request. 3. R2 will forward the DHCP request to the DHCP server at IP address 198.51.100.100 (connected to R2's Gi0/1 interface). 4. The DHCP server will process the request and offer an IP address to R1. 5. R2 will relay the DHCP offer back to R1 through its Gi0/0 interface. 6. R1 will accept the DHCP offer and configure its Fa0/0 interface with the offered IP address. In summary, by configuring R2's Gi0/0 interface as a DHCP relay-agent using the ip helper-address command, we allow R1 to obtain its IP configuration from the DHCP server connected to R2. This way, the DHCP request can traverse the network from the client (R1) to the DHCP server (198.51.100.100) and back without requiring any manual IP configuration on R1.
upvoted 5 times
...
[Removed]
Most Recent 7 months, 1 week ago
Selected Answer: BC
B & C are correct The function of the DHCP relay agent is to forward the DHCP messages to other subnets so that the DHCP server does not have to be on the same subnet as the DHCP clients. The DHCP relay agent transfers DHCP messages from the DHCP clients located on a subnet without a DHCP server, to other subnets.
upvoted 2 times
...
kyleptt
1 year, 1 month ago
Is it that you can only have one helper address ?
upvoted 1 times
...
kyleptt
1 year, 1 month ago
I will lab this up and see
upvoted 1 times
...
cormorant
1 year, 11 months ago
the ip helper-address cmd must point to the ip of the dhcp server. oftentimes, it's a router. but here, it's an actual server!
upvoted 1 times
FALARASTA
1 year, 6 months ago
Configuring DHCP relay agents We configure a DHCP relay agent only on the interface that is directly connected to a local subnet or a client. https://www.computernetworkingnotes.com/ccna-study-guide/how-to-configure-dhcp-relay-agent-on-cisco-routers.html
upvoted 1 times
...
...
SVN05
2 years, 5 months ago
I think ZayaB mistaken for the ip helper-address command. It suppose to be "ip helper-address 198.51.100.100" on R2 Gi 0/0 and "ip address dhcp" on R1 Fa 0/0
upvoted 2 times
...
Hodicek
2 years, 11 months ago
act r1 as PC and add dhcp helper command to r2 and ip should be the dhcp server
upvoted 1 times
...
sinear
3 years, 9 months ago
It should be B and D, with in D "R1" instead of "R2".
upvoted 2 times
Zerotime0
3 years, 9 months ago
I think thats it.
upvoted 1 times
Zerotime0
3 years, 9 months ago
Nevermind bc correct
upvoted 3 times
...
...
...
sinear
3 years, 9 months ago
I think there is an error in the answers. Refer to same question 413 on https://pupuweb.com/ccna-200-301-actual-exam-question-answer-dumps-5/2/ : it is correct there Instead of having I think here they put an error in the answer (confusion between R1 and R2 in the proposal with "ip dhcp address".
upvoted 1 times
Aval0n1
3 years, 7 months ago
There is no need of DHCP relay if gi0/0 R2 have assigned dhcp address. So B and C are correct
upvoted 2 times
...
...
Ali526
3 years, 10 months ago
Don't agree. CE are correct.
upvoted 4 times
ROBZY90
3 years, 6 months ago
BC Is correct, you must configure relay-agent on the router closest to the client (Not on the client). Bit of a tricky question to be honest
upvoted 10 times
sdokmak
3 years, 4 months ago
This is what I was looking for
upvoted 3 times
...
...
Ali526
3 years, 9 months ago
Sorry. BC correct.
upvoted 9 times
...
...
