Exam 300-810 topic 1 question 40 discussion

Actual exam question from Cisco's 300-810

Question #: 40
Topic #: 1

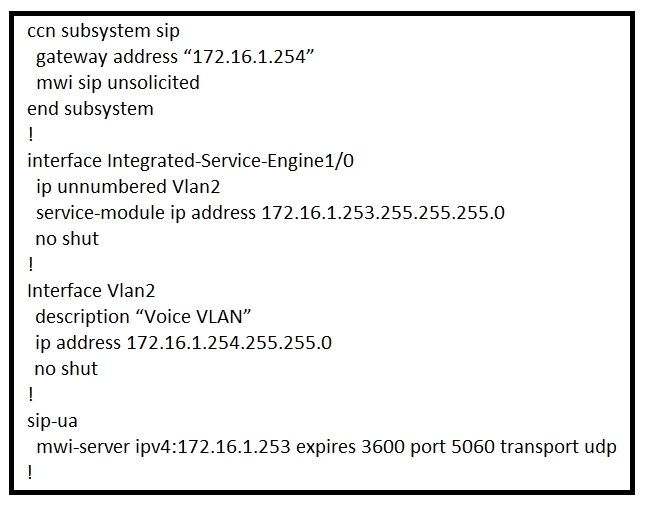

Refer to the exhibit.

A collaboration engineer has integrated Cisco Unity Express with Cisco Unified Communications Manager Express and is experimenting with the MWI feature.
With the current configuration, no MWI change occurs when leaving new messages or after playing new messages. Which two changes are needed to correct the configuration? (Choose two.)

A. ccn subsystem sip mwi sip outcall
B. ccn subsystem sip mwi envelop-info
C. sip-ua no mwi-server mwi-server ipv4:172.16.1.254 expires 3600 port 5060 transport udp
D. ccn subsystem sip mwi sub-notify
E. sip-ua no mwi-server mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport tcp notify
F. sip-ua no mwi-server mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport udp unsolicited

Show Suggested Answer

Suggested Answer: AF 🗳️

by hottopic at Jan. 25, 2021, 8:41 p.m.

Comments

Submit Cancel

2d7d574

10 months, 2 weeks ago

The answer is C and F

upvoted 2 times

...

Iva9693

1 year, 2 months ago

The documentation states "You cannot use unsolicited-notify mechanism along with any other mechanism at the same time" so it cannot be A B D, then what are the correct choises :/

upvoted 1 times

...

Frank31

4 years, 5 months ago

answer is B-D mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport udp is a correct config in the unity express need envelop-info and sub-notify added https://www.cisco.com/c/en/us/support/docs/unified-communications/unity-express/211258-Configure-and-Troubleshoot-CUE-MWI-Mecha.html#anc9

upvoted 4 times

marioboss

10 months ago

Answer "mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport udp" is right, but it´s none of them....

upvoted 1 times

...

hottopic

4 years, 6 months ago

Outcall and unsolicited cannot be configured at the same time. D,E would seem to be correct.

upvoted 2 times

...
