Exam 300-610 topic 1 question 20 discussion

Actual exam question from Cisco's 300-610
Question #: 20
Topic #: 1
[All 300-610 Questions]

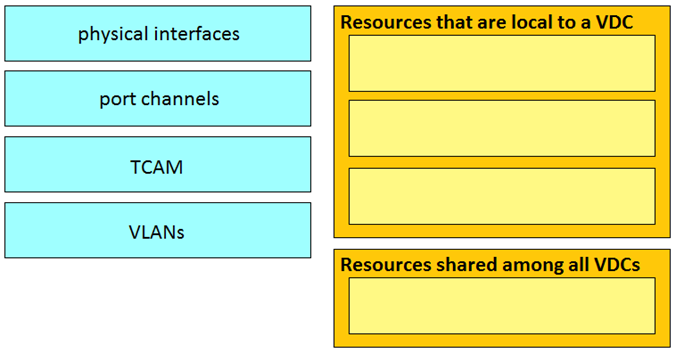

DRAG DROP -
Drag and drop the Cisco Nexus 7000 Series Switch resources from the left onto the correct groups on the right.
Select and Place:

Show Suggested Answer Hide Answer

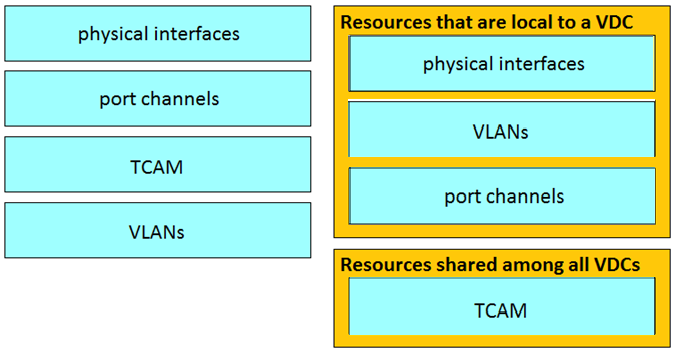

Suggested Answer:
Reference:
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/nx-os/virtual_device_context/configuration/guide/b-7k-Cisco-Nexus-7000-Series-NX-
OS-Virtual-Device-Context-Configuration-Guide/creating-vdc.html
by bentoj at Jan. 31, 2021, 1:04 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
FonT
Highly Voted 2 years, 6 months ago
I confirm TCAM is shared "The FIB TCAM entries are system wide resources that are shared across virtual device contexts (VDC) configured on the module. Table 16-2 describes the supported maximum FIB scale entries on the Nexus 7000 system configuration per route-type." https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/nx-os/unicast/configuration/guide/b-7k-Cisco-Nexus-7000-Series-NX-OS-Unicast-Routing-Configuration-Guide-Release/n7k_unicast_managinging_rib_fib.html
upvoted 5 times
...
FonT
Most Recent 10 months ago
"The FIB TCAM entries are system wide resources that are shared across virtual device contexts (VDC) configured on the module. Table 16-2 describes the supported maximum FIB scale entries on the Nexus 7000 system configuration per route-type." https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/nx-os/unicast/configuration/guide/b-7k-Cisco-Nexus-7000-Series-NX-OS-Unicast-Routing-Configuration-Guide-Release/n7k_unicast_managinging_rib_fib.html
upvoted 1 times
...
Andcak33
11 months, 1 week ago
TCAM sections are dedicated for each VDC, TCAM as a whole is not.
upvoted 1 times
...
Woodie
1 year ago
Physical Interfaces, Port-Channels and VLANs are not shared between VDCs. So the most reasonable option for a shared resource is the TCAM.
upvoted 2 times
...
bittenbt
1 year, 3 months ago
TCAM is dedicated and local to a VDC. P64 in the course book.
upvoted 1 times
...
msagimlar
2 years, 3 months ago
True answer ?
upvoted 1 times
...
bentoj
2 years, 9 months ago
TCAM is not shared, it's dedicated to each VDC
upvoted 1 times
...
