Exam 200-301 topic 1 question 383 discussion

Actual exam question from Cisco's 200-301
Question #: 383
Topic #: 1
[All 200-301 Questions]

DRAG DROP -

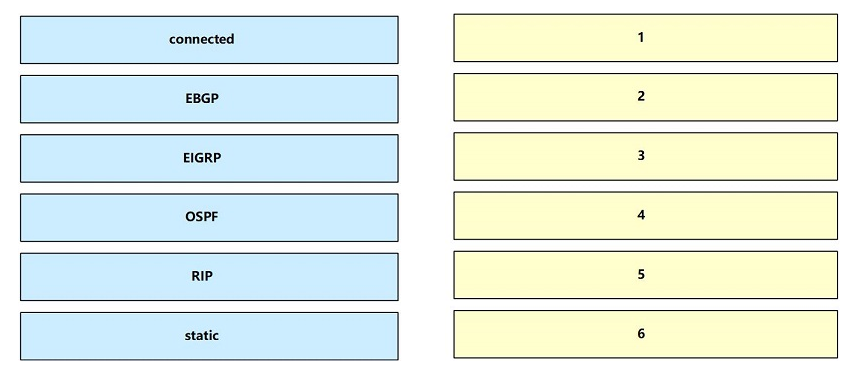

Drag each route source from the left to the numbers on the right. Beginning with the lowest and ending with the highest administrative distance.
Select and Place:

Show Suggested Answer Hide Answer

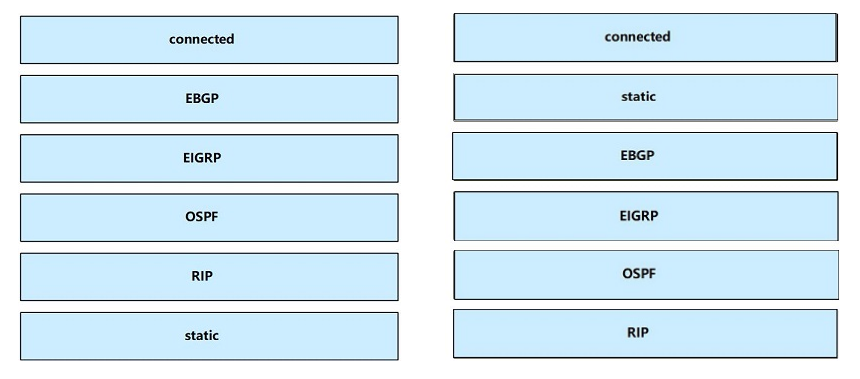

Suggested Answer:
by Chocobo at Feb. 17, 2021, 5:55 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Chocobo
Highly Voted 3 years, 8 months ago
Administrative distances for these are: Connected - 0 Static route - 1 EBGP - 20 EIGRP - 90 OSPF - 110 RIP - 120
upvoted 55 times
jerry19
3 years, 6 months ago
To caveat, IBGP is 200. Not shown here but definitely worth noting.
upvoted 20 times
BooleanPizza
3 years, 2 months ago
Also worth noting, IS-IS has an AD of 115.
upvoted 17 times
...
...
...
msomali
Highly Voted 2 years, 6 months ago
here is a list of routing protocols with default ADs Connected = 0 Static Route = 1 eBGP (external) = 20 EIGRP (Internal) = 90 OSPF = 110 IS-IS =115 RIP =120 EIGRP (external) =170 iBGP (internal BGP) = 200 EIGRP summary route = 5
upvoted 21 times
...
[Removed]
Most Recent 6 months, 2 weeks ago
given answers are correct
upvoted 3 times
...
Nevnarion
2 years ago
Easy way to remember these; if you can memorise that connected is first and static is second, the rest of them are in alphabetical order.
upvoted 11 times
[Removed]
1 year, 4 months ago
To memorise that connected is 0 and static is 1, you can use this : c0nnected = 0 and stat1c = 1
upvoted 4 times
...
...
illuded03jolted
2 years, 4 months ago
DO – Directly connected- 0 Secure- Static- 1 Buggy- eBGP- 20 Encryption- Internal (EIGRP)- 90 On- OSPF- 110 Internet- ISIS- 115 Router- RIP- 120
upvoted 5 times
...
