Exam 300-510 topic 1 question 39 discussion

Actual exam question from Cisco's 300-510
Question #: 39
Topic #: 1
[All 300-510 Questions]

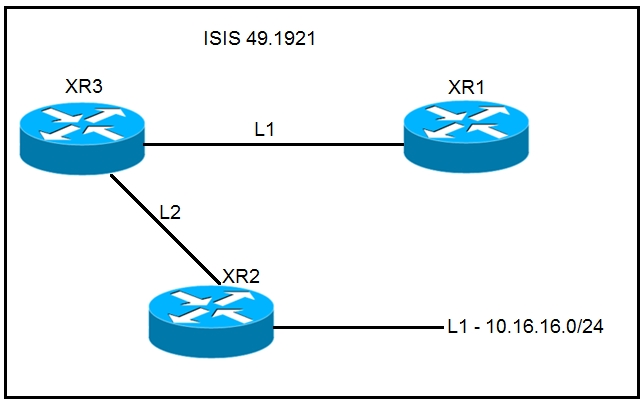

Refer to the exhibit. A network operator must inject a Level 1 route from XR2 (10.16.16.0/24) into the ISIS topology. Which configuration allows the injection in a way that XR3 and XR1 have a valid and working route for 10.16.16.0/24?

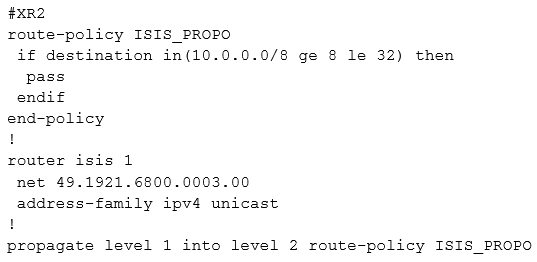

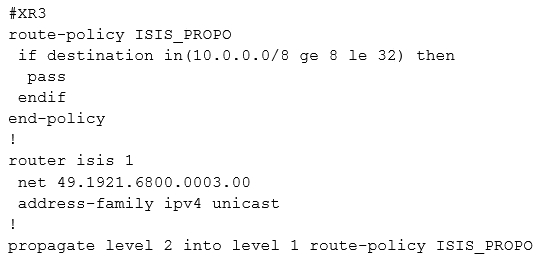

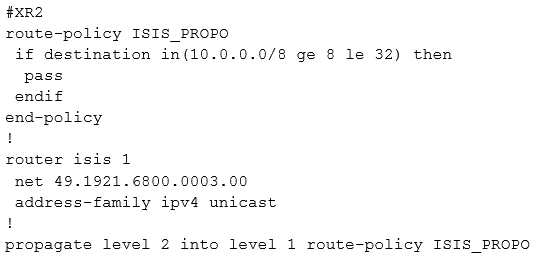

A.

B.

C.

D.

Show Suggested Answer Hide Answer
Suggested Answer: C
by terebok at Feb. 18, 2021, 10:22 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
terebok
Highly Voted 3 years, 2 months ago
I think 'D' is correct answer. L1 route injected by XR2 won't be advertised to XR1, since L2 routes are NOT leaked to L1 by default. An [L2-L1] route leak policy should be configured on L1/L2 router (XR3).
upvoted 7 times
...
DUsoo
Most Recent 6 months, 1 week ago
Of course D
upvoted 1 times
...
Examtogo
1 year, 10 months ago
The correct answer should be "D". The L2 to L1 leaking should happen on XR3.
upvoted 1 times
...
velozkenneth
1 year, 11 months ago
La respuesta correcta es la C. Porque por defecto las rutas de Level-2 nunca son propagadas a un Level-1
upvoted 2 times
...
foxroot
3 years, 1 month ago
Yes, i think that correct is D too
upvoted 3 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
