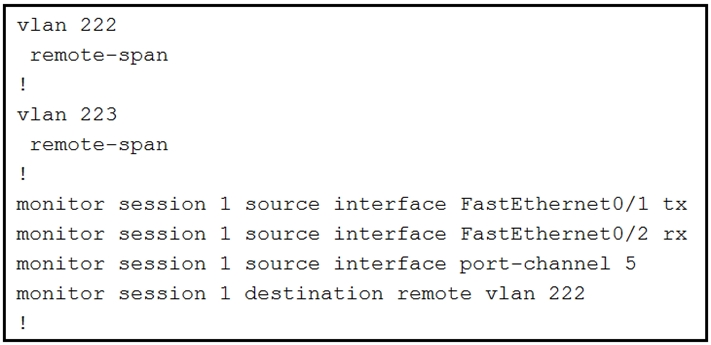

Refer to the exhibit. These commands have been added to the configuration of a switch. Which command flags an error if it is added to this configuration?
A.
monitor session 1 source interface port-channel 6
B.
monitor session 1 source vlan 10
C.
monitor session 1 source interface FastEthemet0/1 rx
D.
monitor session 1 source interface port-channel 7, port-channel 8
I labbed this on a switch, and it's answer B.
Switch#sh run | i moni
monitor session 1 source interface Gi0/2 rx
monitor session 1 source interface Gi0/1 tx
monitor session 1 source interface Po5
monitor session 1 destination remote vlan 222
Switch(config)#monitor session 1 source vlan 10
% Cannot add VLANs as sources for SPAN session 1
A range of addresses can be added (D), separated by a comma (,):
Switch(config)#monitor session 1 source interface port-channel 5 ?
, Specify another range of interfaces
both Monitor received and transmitted traffic
rx Monitor received traffic only
tx Monitor transmitted traffic only
<cr>
{Retyping in the correct order & format}
I tried to add to the section ,
SW-1#show run | sec monitor
monitor session 1 source interface Gi0/3
monitor session 1 destination remote vlan 110
SW-1(config)#monitor session 1 source vlan 30
% Cannot add VLANs as sources for SPAN session 1
SW-1(config)#
Answer is B
A monitor session can source from interfaces or VLANs – not both at the same time.
RSPAN consists of at least one RSPAN source session, an RSPAN VLAN, and at least one RSPAN destination session. You separately configure RSPAN source sessions and RSPAN destination sessions on different network devices. To configure an RSPAN source session on a device, you associate a set of source ports or source VLANs with an RSPAN VLAN.
Traffic monitoring in a SPAN session has these restrictions:
+ Sources can be ports or VLANs, but you cannot mix source ports and source VLANs in the same session.
