B is the right answer, this was a tricky one... I quickly realized that both partner and local routers cannot be in the same passive mode for a link to form. The question is asking "what mode are YOU on". Well since you are able to see your partner information you would be in "active mode". Weather you partner is on "active" or "passive" doesn't matter, as long as you are active you can pull neighbors information.
ChatGPT-4 answered this question incorrectly (option C) until I pointed out that the ET1/0 and ET1/1 interfaces did not belong to SW1. It then used the correct logic to select option B.
In configuring Dynamic EtherChannel, with PAgP, at least one of the two sides must use desirable, and with LACP, at least one of the two sides must use active. The question is showing the other device with SP code...means, its LACP is PASSIVE. Therefore, opposite device's LACP configuration must be ACTIVE.

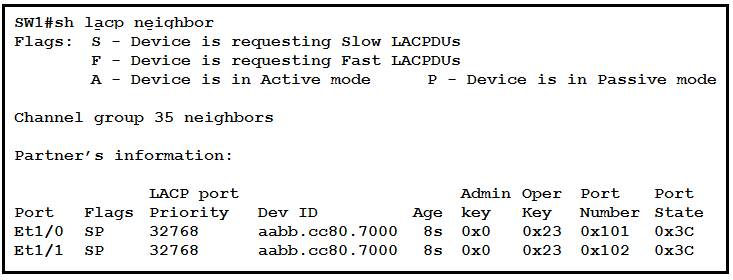

They key to this question is the line that reads "Partner's Information:" from there you know that you need to interpret the flags for the operational modes from the lens of "If my neighbor's port channel is configured this way, how do I need to configure mine so that I can actively form a LAG."
B is 100% correct.
In short, SW1 will always reflect its neighbor's status (how it is configured ). It is displaying SP(which means SW is Passive) for LACP communication to happen, one must be active, so this means SW1 has been configured as Active.
the answer is C because the question asks for the configuration mode and not how SW1 should be configured to be in etherchannel. the question is quite obvious.
