Exam 350-501 topic 1 question 165 discussion

Actual exam question from Cisco's 350-501
Question #: 165
Topic #: 1
[All 350-501 Questions]

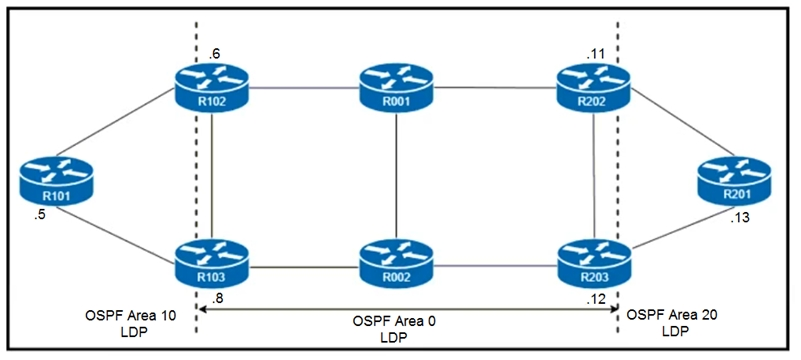

Refer to the exhibit. R101 is peering with R102 and R103, and R201 is peering with R202 and R203 using iBGP Labeled Unicast address families. The OSPF area 0 border routers are in a full iBGP Labeled Unicast mesh, and VPNv4 routes are exchanged directly between PE routers R101 and R201 through iBGP.
Which address family-level configuration must be applied on ABR R102 on ABR R102 to support a Unified MPLS routing architecture with partitioned IGP domains?

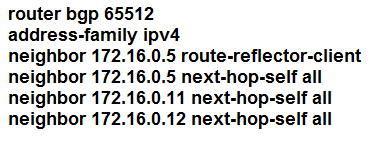

A.

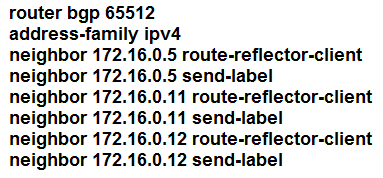

B.

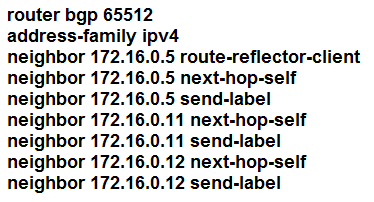

C.

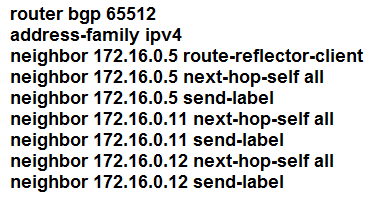

D.

Show Suggested Answer Hide Answer
Suggested Answer: D
by ctahoeb at April 30, 2021, 6:17 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
beenardino
Highly Voted 2 years, 5 months ago
Yes I agree is D, as you can see on this cisco url route reflector is only used once per router: https://www.cisco.com/c/en/us/support/docs/multiprotocol-label-switching-mpls/mpls/116127-configure-technology-00.html
upvoted 7 times
beenardino
2 years, 5 months ago
Just to add its the one with the next-self-hop all and only one route reflector which is answer D.
upvoted 2 times
...
...
12_sdeEQ
Most Recent 7 months, 2 weeks ago
Yes D is correct
upvoted 1 times
...
ccie_race
1 year ago
D next-hop-self all send-label
upvoted 2 times
...
jefranca
2 years ago
It is D e-learning Cisco: Route Reflectors are configured with the *next-hop-self all* feature to allow for RRs to change next hop to their own loopback IP even for the reflected prefixes. LDP operates normally inside the IGP islands, however BGP labeled unicast layer is responsible for the inter network segment label exchange.
upvoted 4 times
...
ctahoeb
2 years, 6 months ago
I think it's D : https://www.cisco.com/c/en/us/support/docs/multiprotocol-label-switching-mpls/mpls/116127-configure-technology-00.html
upvoted 3 times
Mahalasmi
2 years, 5 months ago
It is D
upvoted 3 times
...
...
