Exam 350-401 topic 1 question 74 discussion

Actual exam question from Cisco's 350-401
Question #: 74
Topic #: 1
[All 350-401 Questions]

DRAG DROP -

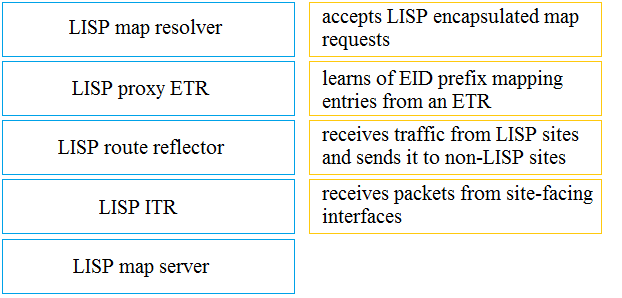

Drag and drop the LISP components from the left onto the functions they perform on the right. Not all options are used.
Select and Place:

Show Suggested Answer Hide Answer

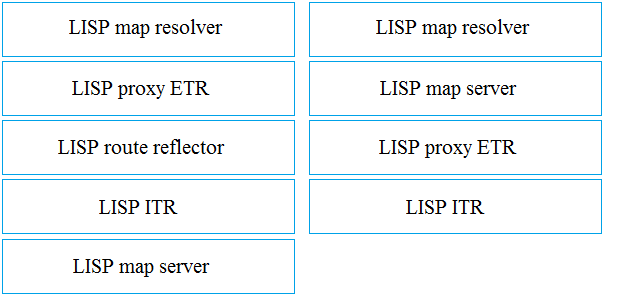

Suggested Answer:
Reference:
https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Data_Center/DCI/5-0/LISPmobility/DCI_LISP_Host_Mobility/LISPmobile_2.html#:~:text=%
E2%80%93%20Proxy%20ITR%20(PITR)%3A%20A,devices%20deployed%20at%20LISP%20sites.
by [deleted] at May 9, 2021, 10:24 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
[Removed]
Highly Voted 3 years, 6 months ago
The given answer is correct
upvoted 15 times
...
Entivo
Highly Voted 1 year, 5 months ago
Pages 465/466 of the Cisco OCG states this very very clearly. The order is Resolver (accepts map requests) Server (learns EID mapping entries from an ETR) Proxy ETR (LISP to non-LISP) ITR (receives packets from site-facing interfaces)
upvoted 6 times
...
[Removed]
Most Recent 6 months, 2 weeks ago
given answer is correct
upvoted 1 times
...
MaxwellJK
1 year, 4 months ago
La respuesta esta correcta
upvoted 1 times
...
Nickplayany
1 year, 9 months ago
The answer is correct
upvoted 1 times
...
65briang
1 year, 10 months ago
Page 466 OCG - Map Server is a network device that learns EID-to-prefix mapping entries from and ETR and stores them in a local EID-to-RLOC database.
upvoted 1 times
...
mailmivhan
2 years, 11 months ago
Wrong , I believe this is the correct answer. accept LISP encapsulated map request LISP MAP RESOLVER learns of EID prefix mapping entries from an ETR LISP MAP SERVER receives traffic from LISP sites and sends it to non-LISP sites LISP ITR receives packets from site facing interfaces LISP PROXY ETR –Ingress Tunnel Router (ITR): An ITR is a LISP Site edge device that receives packets from site-facing interfaces (internal hosts) and encapsulates them to remote LISP sites, or natively forwards them to non-LISP sites. –Egress Tunnel Router (ETR): An ETR is a LISP Site edge device that receives packets from core-facing interfaces (the transport infrastructure), decapsulates LISP packets and delivers them to local EIDs at the site.
upvoted 4 times
OhBee
2 years, 11 months ago
Not really, the keyword here is non-LISP sites, so Proxy components are automatically involved. ITRs accepts traffic from the internal site hosts that are sent to other LISP sites. ETRs can publish the EID to RLOC mappings from their site and also forward requests to internal hosts coming from ITRs or xTRs.
upvoted 10 times
...
...
